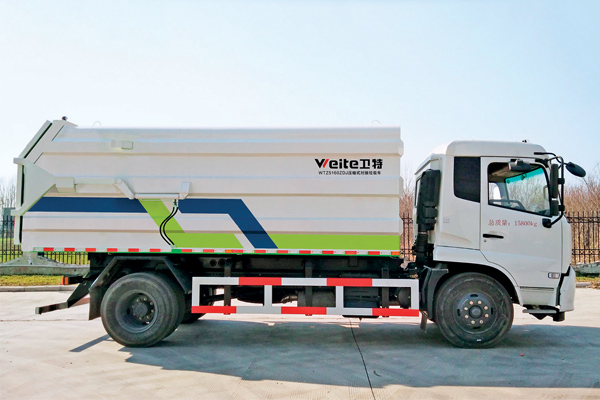

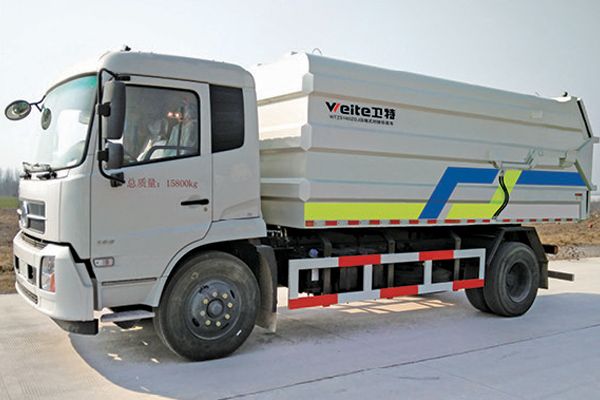

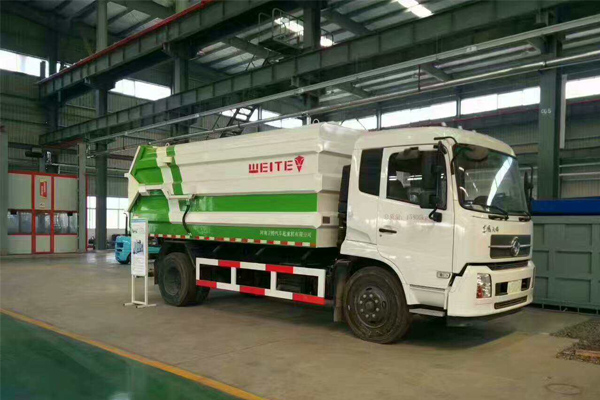

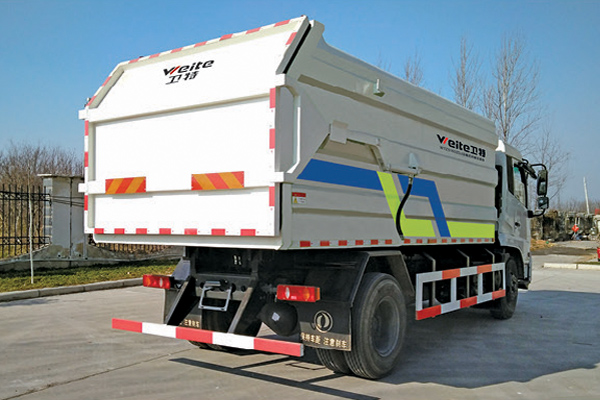

Product Name: Compression Docking Garbage Truck
Weight: 12,590kg, 15,800kg, 16,000kg
Tank Volume: 13L, 17L
This truck is usually used with garbage compression transfer station with compressed garbage docking charge, sealed transport, automatic discharge.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >
1. This vehicle is usually used with garbage compression transfer station with compressed garbage docking charge, sealed transport, automatic discharge and other functions, easy to operate and reliable.
2. The operating system can be automatic and manual mode.
3. Lifting and discharge adopt magnifying or double cylinder lift mechanism with good operating ability.
4. Back door opening and closing with full hydraulic drive, smooth and reliable.
5. Overall box design, sealed and reliable, durable.
6. Streamlined design with generous and clean appearance.
| Model | WTZ5120ZDJ | WTZ5160ZDJ | WTZ5161ZDJ |
| Dimension (mm) | 6680X2500X3100 | 7700X2500X3200 | 7700X2500X3200 |
| Weight (kg) | 12590 | 15800 | 16000 |
| Chassis model | DFL1120B21 | DFL1160BX1V | EQ1160GD5NJ |
| Chassis engine model | ISD160 | ISD180 | YC6J190N-52 |
| Chassis engine power (kW) | 118 | 132 | 140 |
| Chassis engine emission standard | 国Ⅴ | 国Ⅴ | 国Ⅴ |
| Wheelbase (mm) | 3800 | 4500 | 4500 |
| Tank volume（m³） | 13 | 17 | 17 |
| Unloading | Double cylinder lift | Single cylinder zoom lift | Single cylinder zoom lift |
| Sealing | Rubber parts | Rubber parts | Rubber parts |
| Max. truck speed (km/h) | 90 | 90 | 90 |

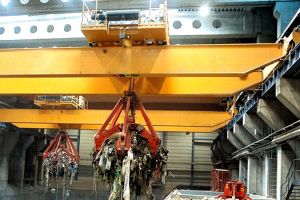

Overhead Crane for Garbage Disposal
