Free-Standing Jib Crane

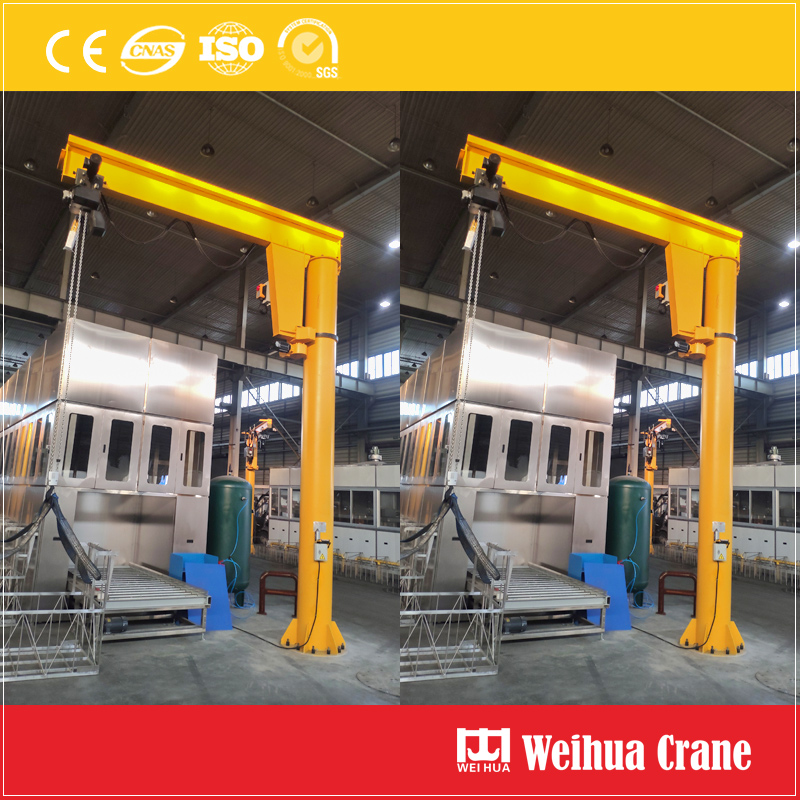

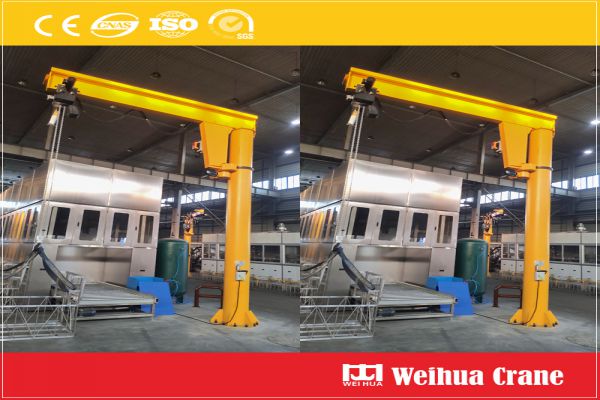

Free standing jib crane (also known as: floor jib crane, fixed pillar jib crane, column cantilever crane) is a light lifting equipment designed to adapt to modern production. The BZD free standing jib crane is made according to Germany standard.

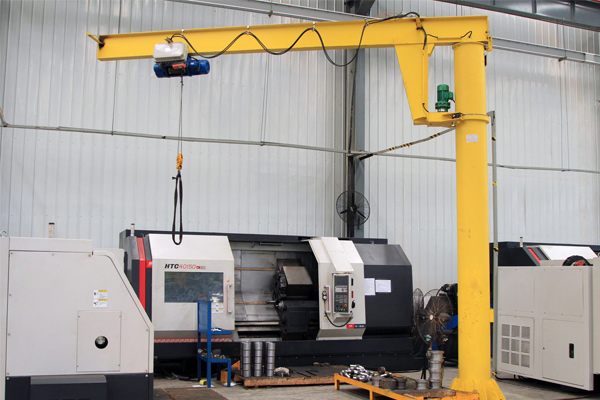

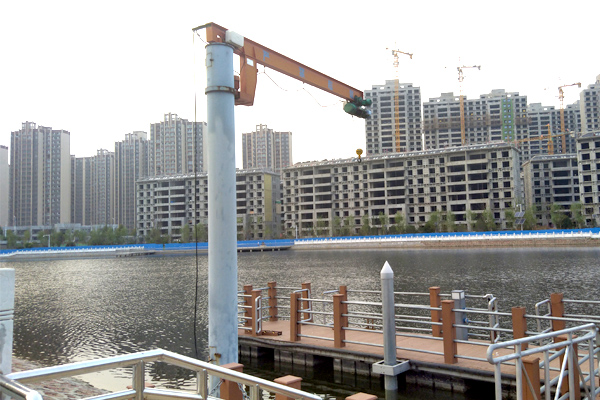

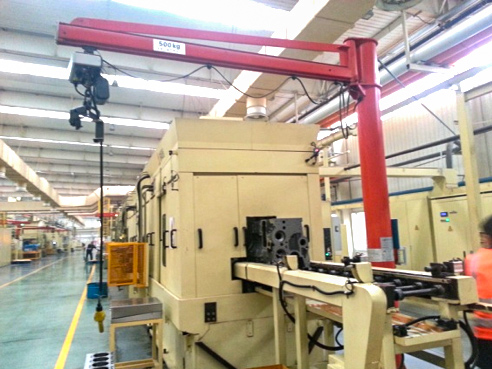

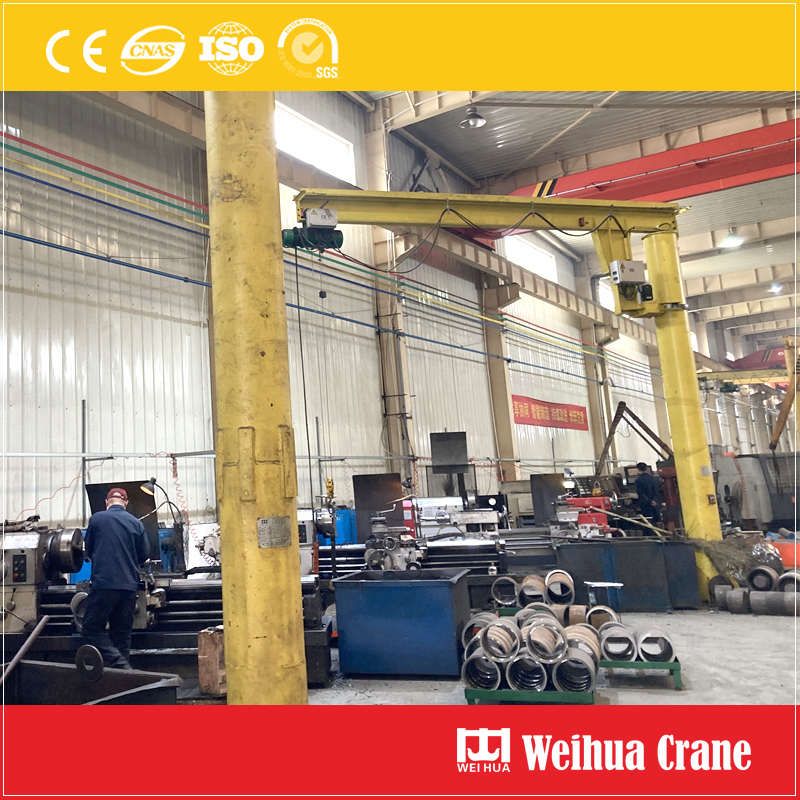

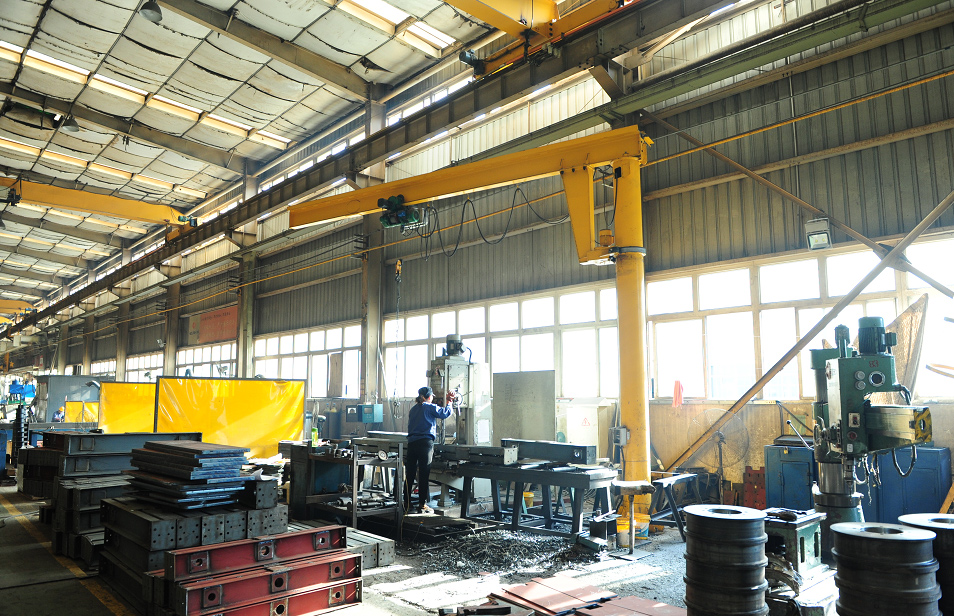

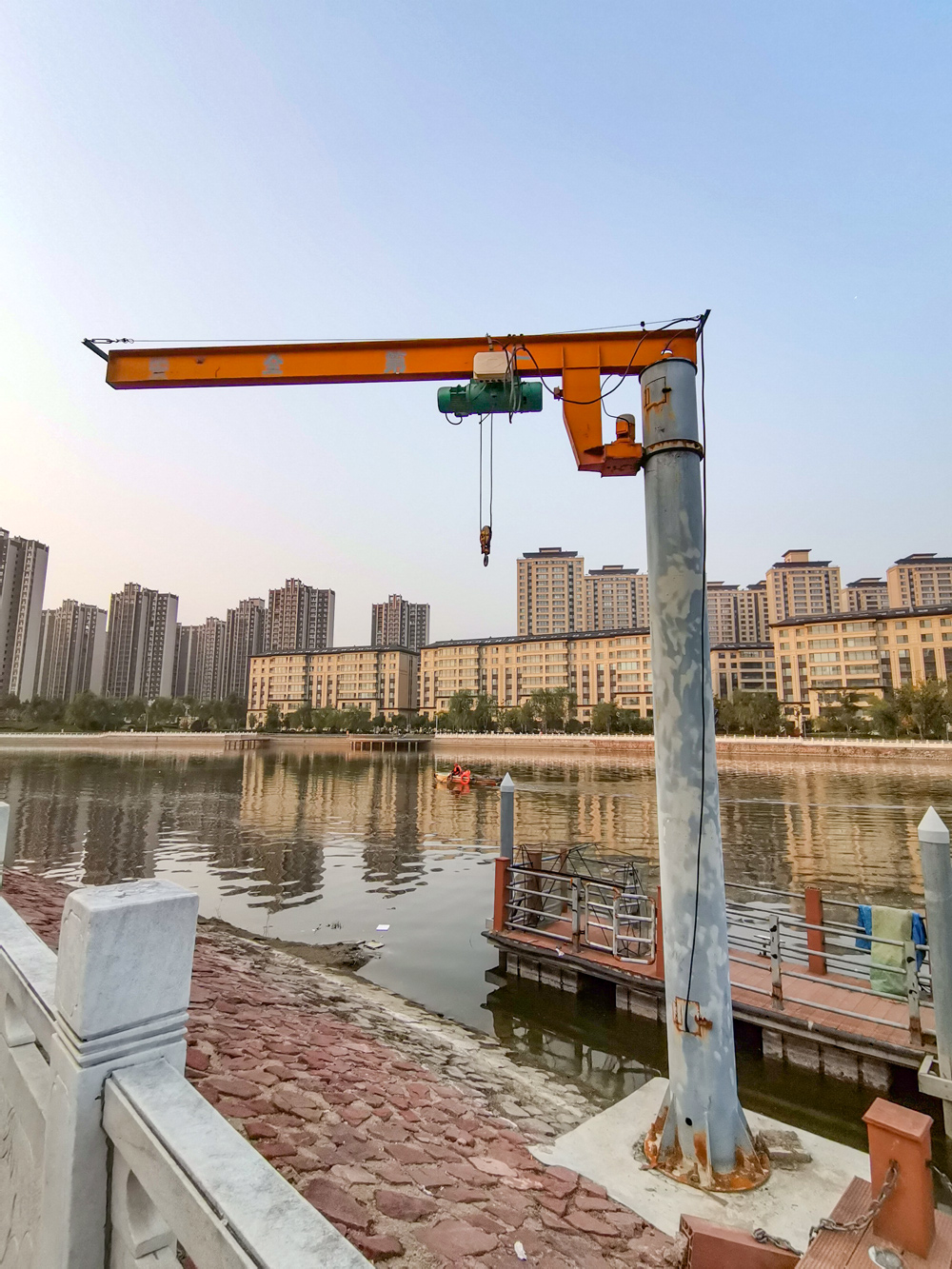

This jib crane has the advantages of novel, reasonable and simple structure, simple operation, flexible rotation, large working space, energy-saving and high-efficiency. It can be used in production lines, assembly lines and machine tools in factories, mines and workshops, as well as in warehouses, docks and other occasions for workpiece and material lifting.

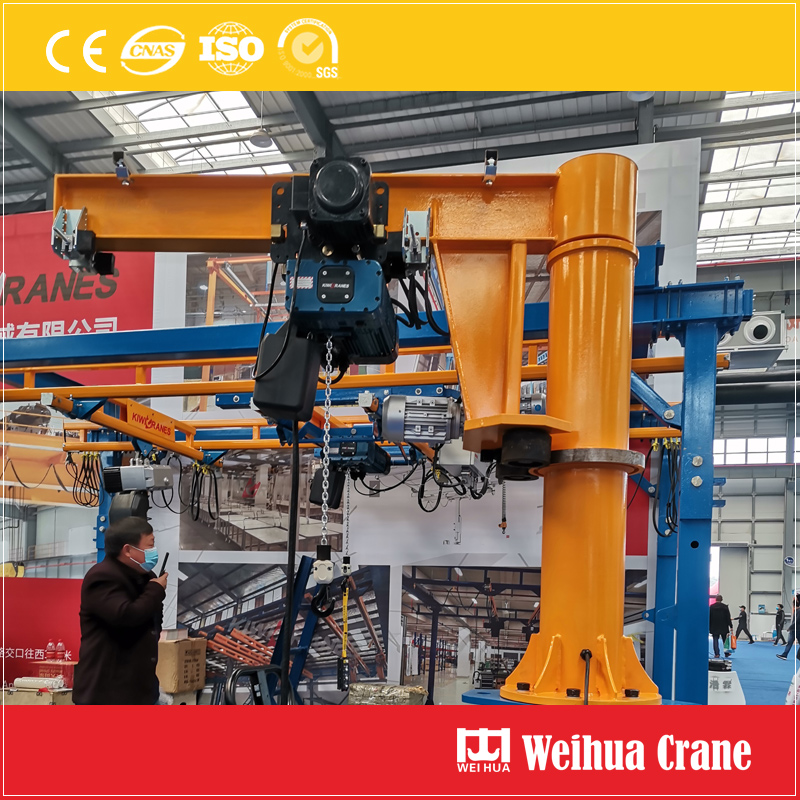

The free-standing jib crane is composed of a column/pillar, a slewing device, a jib arm and an electric hoist, etc. The lower end of the column is fixed on the concrete foundation floor, and the swing arm rotates according to user requirements. The rotation part can be manual and electric operation. The electric chain hoist or wire rope hoist is installed on the jib track for lifting heavy objects.

The hoist travels under the jib arm which is driven by the reducer on the slewing device, and the electrical control box is installed on the electric hoist.

The operation of this jib crane is controlled by the button pendant or remote control. There are eight buttons on the pendant, which control the fast rise, fast fall, slow rise, slow fall, left and right rotation and the horizontal movement of the hoist trolley.

Note:

1. Do not press the fast and slow button and the reverse rotation button of the same motor at the same time during operation.

2. It is forbidden to stand under the jib during operation.

3. It is forbidden to lift heavies that exceed the rated load.

4. For convenient transportation, the jib crane adopts disassembly packaging. Users can install it according to the product manual.

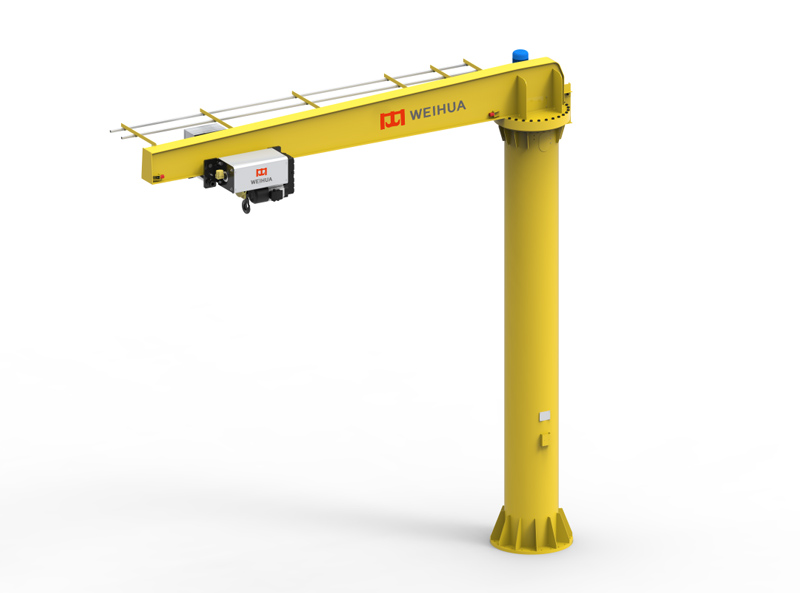

European Standard Jib Crane with NR Wire Rope Hoist
