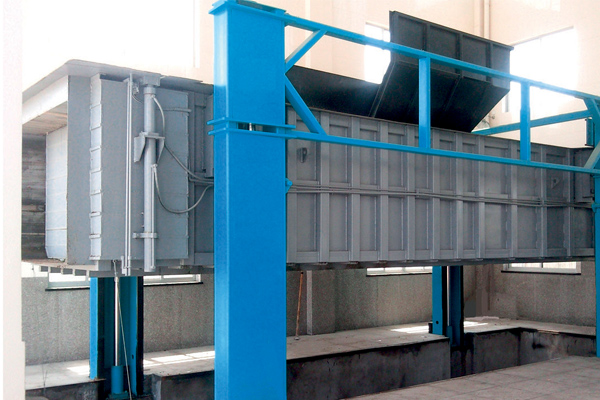

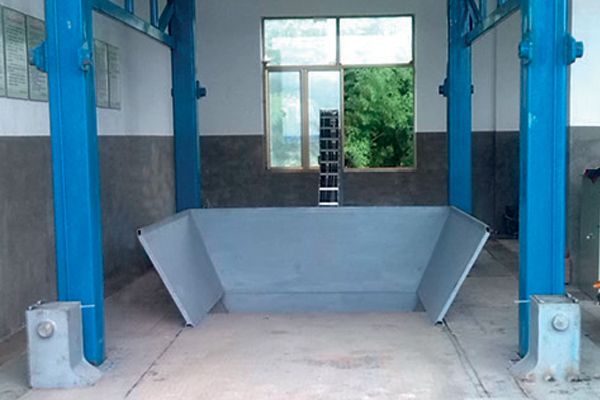

Product Name: Horizontal Garbage Compression Transfer Station
Max. Compression Force: 100t
Capacity: ≥150t/d
Features of horizontal garbage transfer station: horizontal three-cylinder or single-cylinder compression with big compression force, high compression ratio.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >

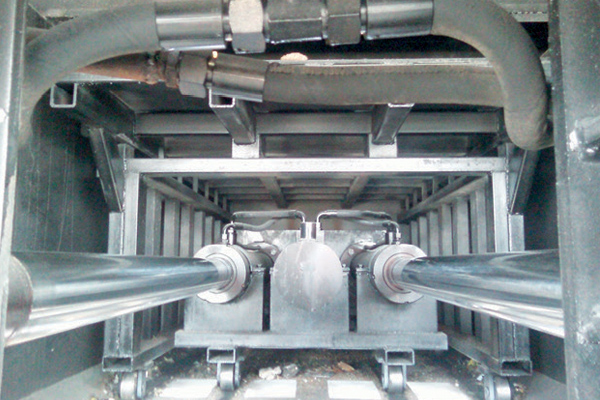

1. Compression: horizontal three-cylinder or single-cylinder compression with big compression force, high compression ratio.
2. Operating system: advanced PLC programming control system with automatic operation and protection functions, effectively reduce the operator labor intensity, improve operating efficiency.
3. Super compression force, sewage discharged completely, no secondary pollution.
4. Compact structure, small footprint, high field utilization.
5. Full hydraulic operation, less noise, large capacity, effectively improve the labor environment.
| Model | WTZ100TDSLZ14 | WTZ100TDSLZ10 | WTZ100TDSLZ8 | WTZ45TDSLZ6 |
| Dimension (mm) | 11750X3380X4000 | 9900X3350X4000 | 9000X3350X4000 | 6800X3110X3610 |
| Max. Compreesion Force（T) | 100 | 100 | 100 | 45 |
| Compression Type | Horizontal Compression | Horizontal Compression | Horizontal Compression | Horizontal Compression |
| Hydraulic System Power（MPa） | 21 | 21 | 21 | 21 |
| Motor Power（kw） | 22 | 22 | 22 | 18.5 |
| Each Garbage Weight（kg) | ≥15000 | ≥10000 | ≥8000 | ≥6000 |
| Capacity（T/day) | ≥150 | ≥120 | ≥100 | ≥90 |
| Voltage（V） | 380/50HZ | 380/50HZ | 380/50HZ | 380/50HZ |
| PLC programmer | Siemens | Siemens | Siemens | Siemens |
| Water | Tap Water | Tap Water | Tap Water | Tap Water |
FEM/DIN Double Girder Gantry Crane

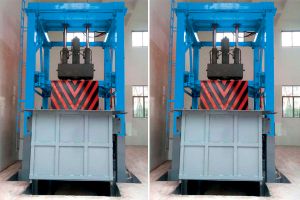

Vertical Garbage Transfer Station
Removable Garbage Truck

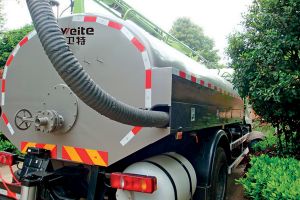

Sewage Suction Truck
