Product: Hot Dip Galvanizing Hoist
Application: Hot dip galvanizing industry
Working duty: M6;
Lifting speed: 16m/min
Running speed: 30m/min
Protection level: IP55
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.Read More >
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.Read More >
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.Read More >
Hot dip galvanizing hoist is specially designed for hot dip galvanizing industry, which has the features of high frequency working, high protection, high stability and accuracy, good matching, less restriction, etc. Due to the special requirements of the hot-dip galvanizing industry, the pickling tank and the zinc pot are generally closed, and only keep the running channel open of the electric hoist wire rope. The channel is narrow, and the standard wire rope electric hoist cannot meet the requirements. So, this hot dip galvanizing hoist is a good choice.
The working duty of the electric hoist can reach M6, the lifting speed can reach 16m/min, and the running speed can reach 30m/min, which can effectively meet the high frequency and heavy load requirements of users.
The protection level of the motor and electric control box is IP55; high-strength galvanized steel wire rope; the outer surface of the hoist structure is sprayed with anti-corrosion paint; part of the hoist's connecting parts and fasteners are made of chrome or stainless steel, which eliminates safety hazards and improves production efficiency.

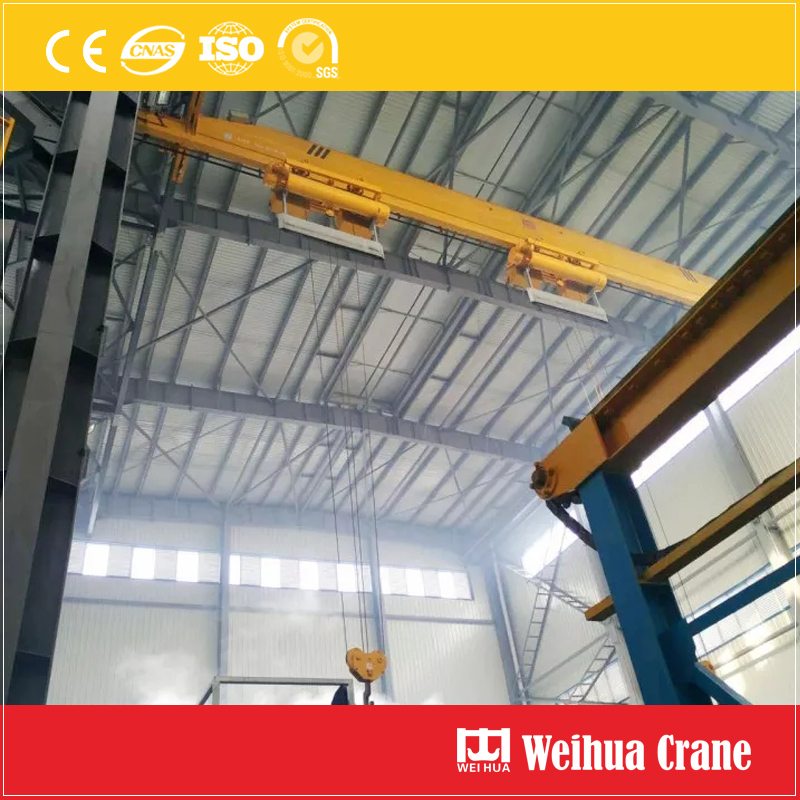

The electric hoist works in pairs, and the hook adopts a vertical lifting structure design, which effectively ensures the stability of lifting goods on site.
Electric hoist lifting mechanism and operating mechanism can be equipped with frequency converter and encoder, thus the positioning is accurate, and the electric hoist can be fully automated.

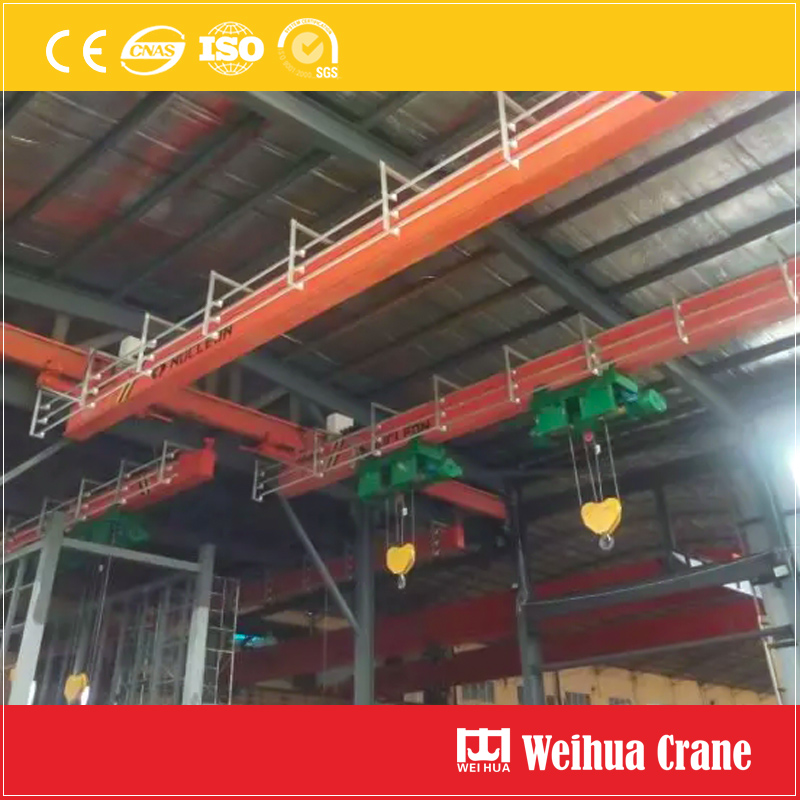

The image above shows cross-track overhead cranes for Galvanizing industry. The important features of this crane is that the electric hoists can travel across different bays by running across crane track on the supporting beam. The 2 or more overhead cranes all have outstretched hoist track under the girder. Thus the overhead cranes is able to stop at the same level without gap to provide a horizontal line for hoist traveling smoothly between different cranes of different bays.

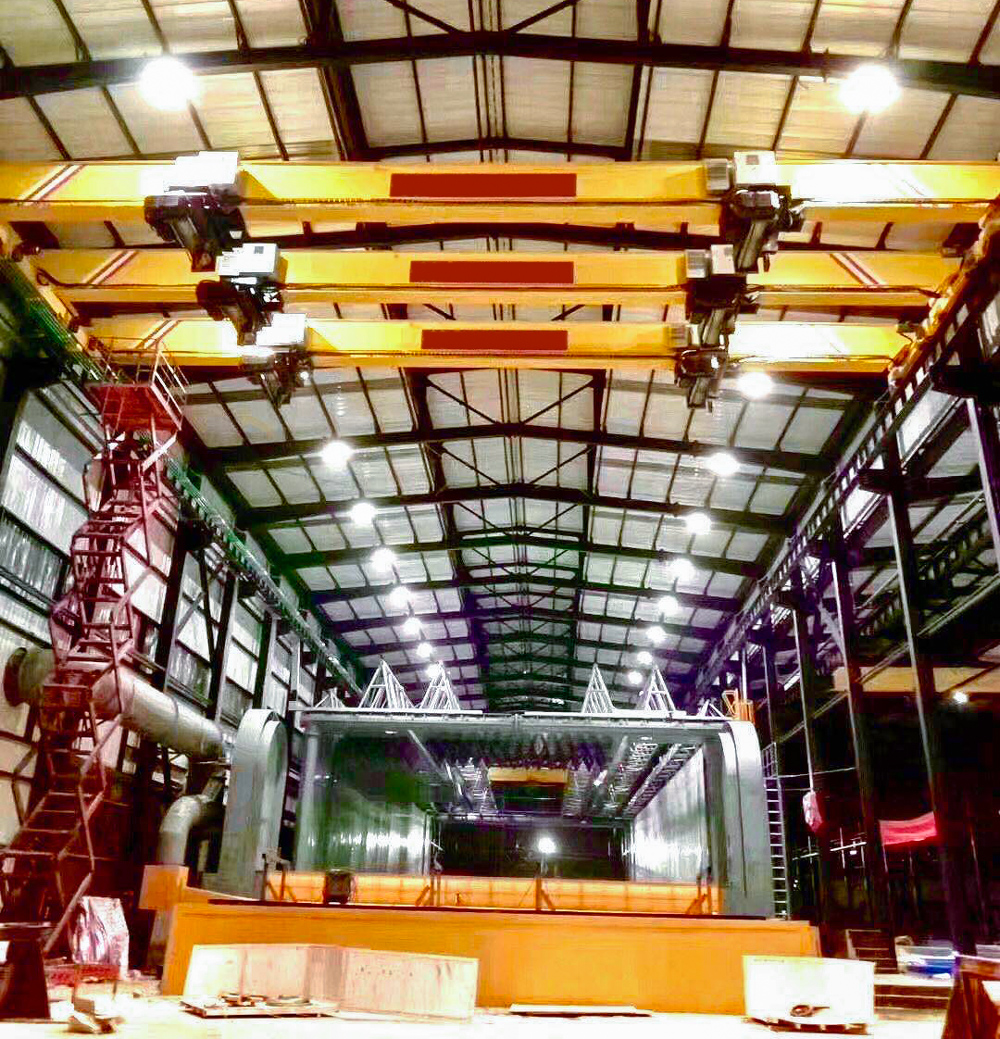

Overhead Traveling Crane with European Standard Hoist at Hot Dip Galvanizing Plant
HB Explosion-Proof Electric Hoist
NR Electric Hoist

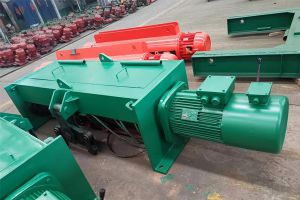

Insulation Electric Hoist
