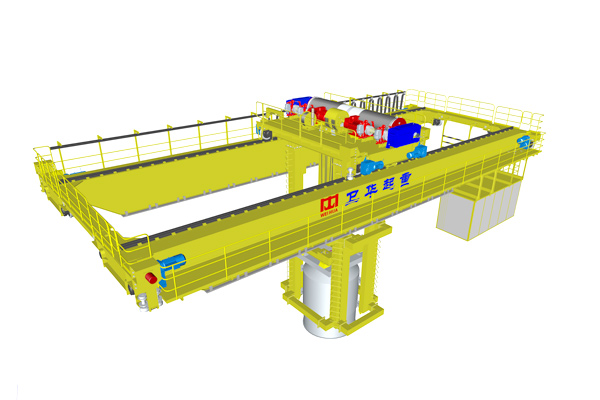

Product Name: Intelligent Overhead Crane for Smelting Feeding
Capacity: 40-60t
Span: 19.5m, 22.5m
Lifting Height: 35-40m
This kind crane is usually for Nickel iron smelting feeding in nickel companies, for lifting material feeding bucket with high level of work and high degree of automation.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.

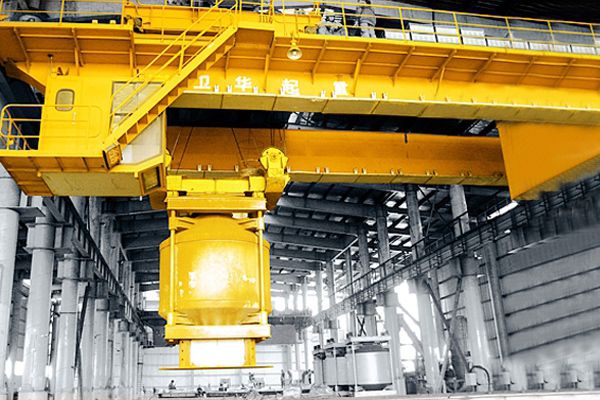

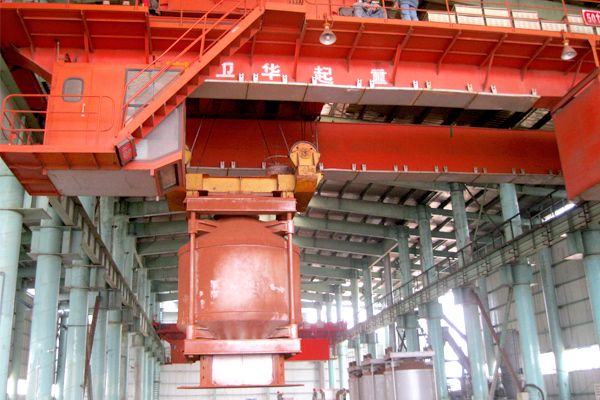

Read More >This intelligent overhead crane for smelting feeding is usually for Nickel iron smelting feeding in nickel companies, for lifting material feeding bucket with high level of work and high degree of automation.

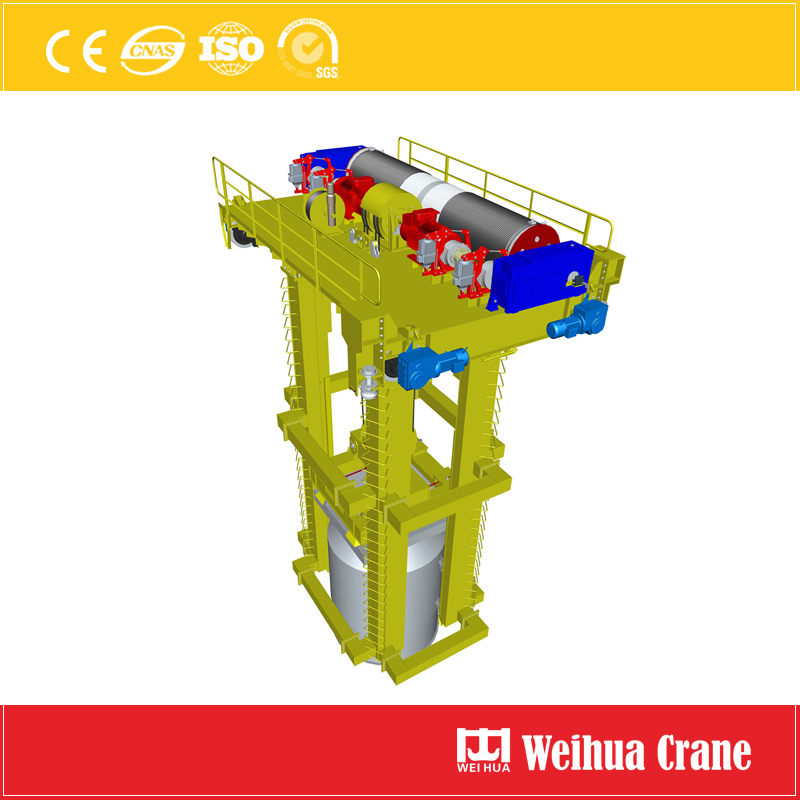

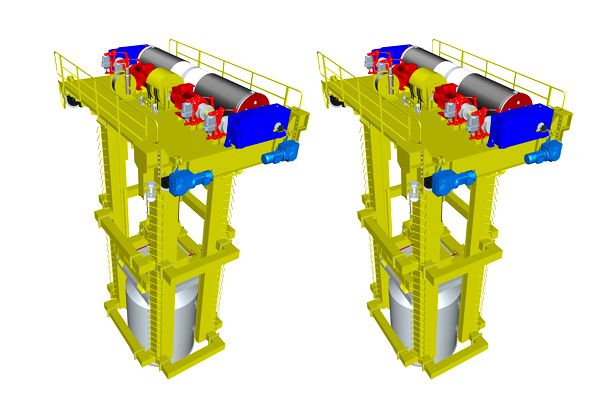

The overhead cranes for smelting feeding work with anti-sway control is able to carry out precise positioning tasks with full-automatic spreader. So it is a anti-sway crane. This crane has the functions of automatic recognition, automatically hook, automatic feeding and automatically changing bucket. And the entire process is controlled by program, monitoring and operating without men. Click to see more weihua large capacity overhead cranes.

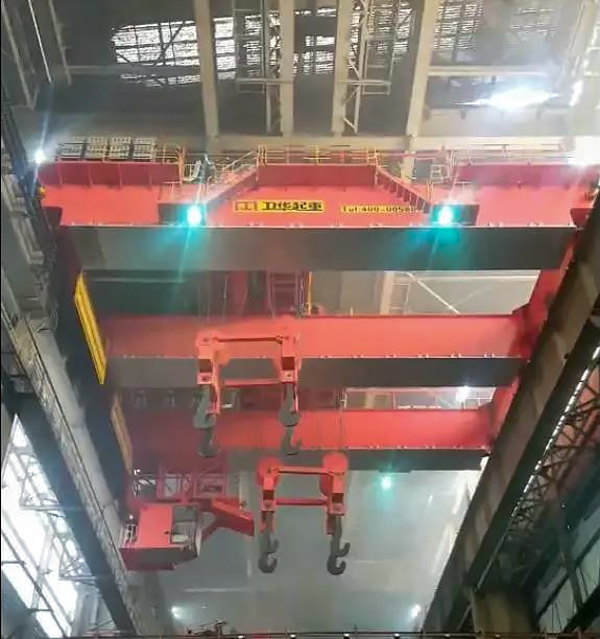

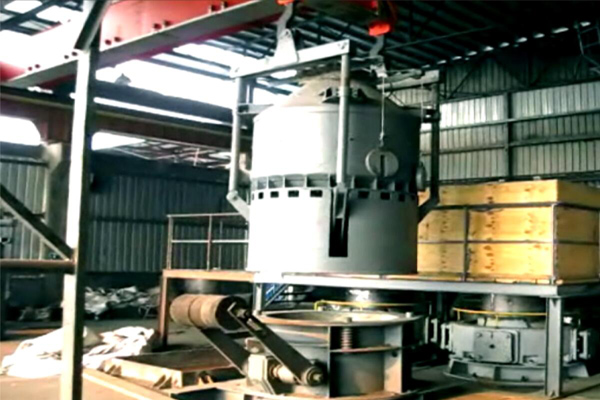

100t Overhead Crane for Metallurgy Material Feeding
| Technical Specifications | ||||||||
| Lifting Capacity | t | Main | 40 | 50 | 60 | |||
| Vice | -- | -- | -- | |||||
| Span | m | 22.5 | 19.5 | 22.5 | ||||
| Lifting Height | m | 35 | 40 | 40 | ||||
| Work Duty | A8 | A8 | A8 | |||||
| Speed | m/min | Main | 2~20 | 2~20 | 1.7~17 | |||
| Vice | -- | -- | -- | |||||
| Crane | 3.4~34 | 3.5~35 | 2.8~28 | |||||
| Trolley | 5.2~52 | 5.2~52 | 5~50 | |||||
| Max Wheel Load (KN) | 210 | 232 | 280 | |||||
| Power (KW) | 259 | 253 | 302 | |||||
| Recommand Track | QU80 | QU80 | QU100 | |||||
| Power Supply | 3-Phase A.C.50Hz 380V | |||||||
