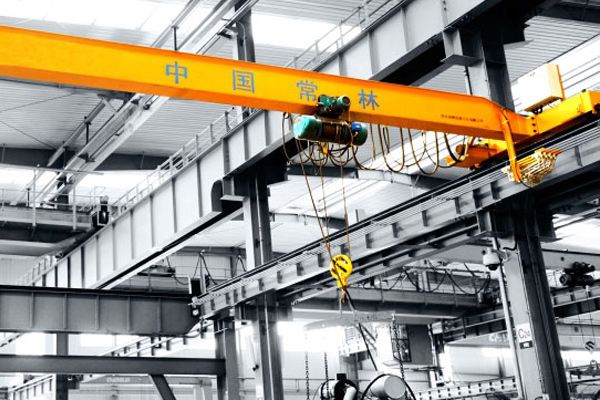

Product Name: LB Explosion-proof Single Girder Overhead Crane
Explosion-proof Grade: ExdⅡBT4/ExdⅡCT4
Work Duty: A4
Lifting Height: 6, 9, 12, 18, 24m
The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.

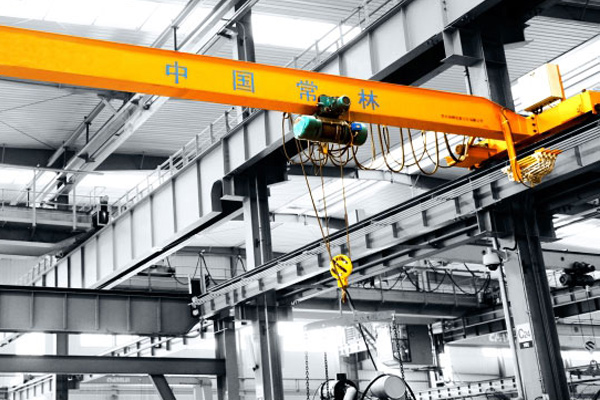

Read More >The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This explosion-proof single girder overhead crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.
With explosion-proof grade of ExdIIBT4 or ExdIICT4, this explosion-proof single girder overhead crane can be used at workshops with initiation ability lower than IIB or IIC, and danger area 1 or 2 (according to GB3836.1-2000). The explosion-proof performance of motor and all electric equipment meets the requirement of GB3836.2-2000.
Lifting weight: 1-16 tons
Lifting height: 1-30 meters
Span: 7.5-24.5 meters
Working level: Intermediate
Working environment: -25℃～+40℃
Explosion-proof grade: IIB or IIC, Grade 3 or 4 explosion-proof
Electric Control Box
Pendant
Lifting weight: 1-16 tons
Lifting height: 1-30 meters
Span: 7.5-24.5 meters
Working level: Intermediate
Working environment: -25℃～+40℃
Explosion-proof grade: IIB or IIC, Grade 3 or 4 explosion-proof
| LB Technical Specifications | ||||||||
| Crane Traveling Mechanism | Lifting Speed | m/min | 20 | |||||
| Reduce Ratio | 58.95 | |||||||
| Motor | Type | Cone-shape Cage | ||||||
| Power | KW | 0.8×2,1.5×2,2.2×2 | ||||||
| RPM | r/min | 1380 | ||||||
| Lifting Mechanism (Electric Hoist) | Hoist Type | HB, BCD, BMD | ||||||
| Lifting Speed | m/min | 8/0.8,7/0.7,3.5/0.35 8,7,3.5 | ||||||
| Lifting Height | m | 6, 9, 12, 18, 24 | ||||||
| Traveling Speed | m/min | 20 | ||||||
| Motor | Cone-shape Cage | |||||||
| Work Duty | A4 | |||||||
| Power Supply | 380V, 50Hz, Three Phase | |||||||
| Diameter of Wheel | Φ270mm、Φ400mm | |||||||
| Wideth of Track | 37mm~70mm | |||||||
| Explosion-proof Grade | ExdⅡBT4/ExdⅡCT4 | |||||||
