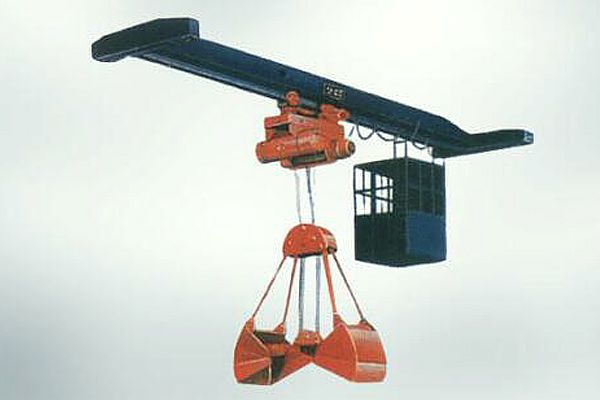

This single girder overhead crane with grab is usually used to grab and lift common materials with work duty not more than A4. Lifting capacity: 10t;
Span: 7.5m ~ 22.5m;
Working temperature: -20℃ ~ 40℃;
Relative humidity ≦ 85%.
Working materiel density: 0.6 ~ 2.9 t/m³
Volume of grabs: 0.75m³, 1m³, 1.5m³and 2.5m³.
.jpg)

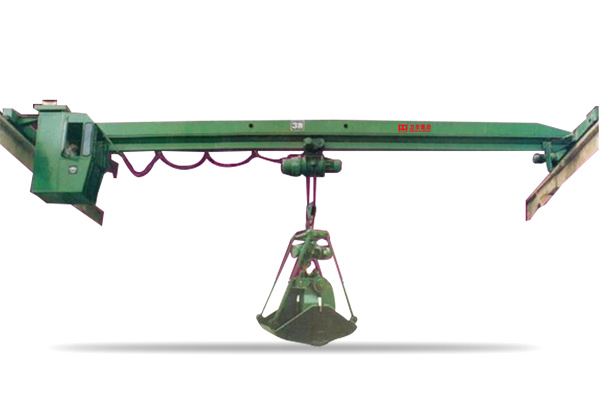

Two electric hoists are equipped on this crane, one works as lifting mechanism, another one works as open-and-close mechanism. This single girder overhead crane with grab has advantages of compact structure, beautiful exterior, convenient for operating, economical and practical. And it's a perfect small equipment to grab materials.
| LDZ Technical Specifications | ||||||||
| Lifeting Capacity (t) | 3 | 5 | ||||||
| Lifting Height (m) | 18 | 18 | ||||||
| Lifting Speed (m/min) | 16 | 16 | ||||||
| Materiel Density (t/m³) | 1 | ≦1 | ||||||
| Work Duty | A4 | A4 | ||||||
| Traveling Speed (m/min) | Trolley | 30 | 30 | |||||
| Crane | 20(30) | 20(30) | ||||||
| Grab | Type | Deadweight(t) | Volume (M³) | Type | Deadweight(t) | Volume (M³) | ||
| 201 | 2.3 | 0.75 | 301 | 3.1 | 1.5 | |||
| Notes: Specification Customizable | ||||||||
