Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station
Mobile Garbage Compression Station

Mobile Garbage Compression Station

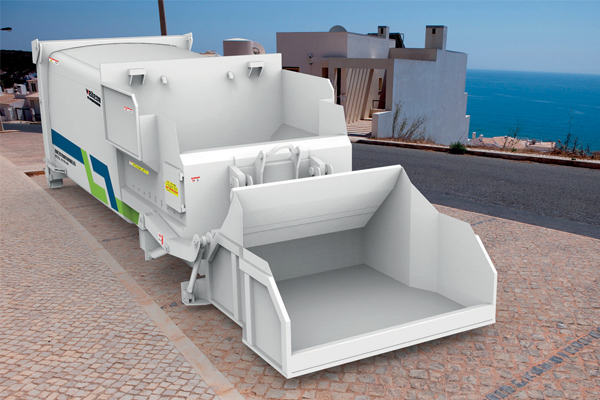

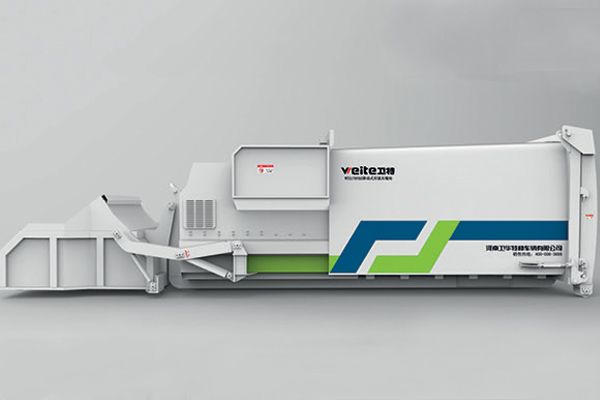

Product Name: Mobile Garbage Compression Station

Max. Compression: 30,000kg, 36,000kg

Hydraulic Pressure: 21Mpa

Bin Volume: 12m3, 17m3

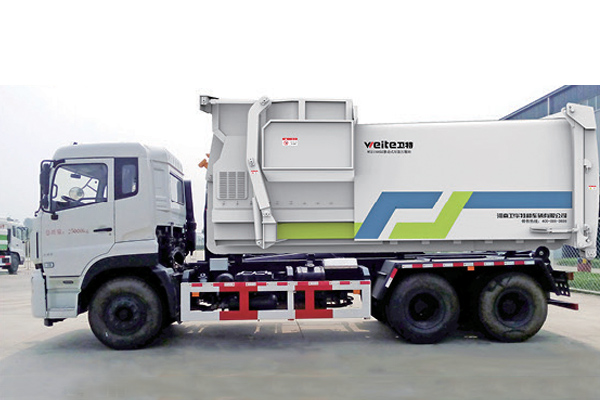

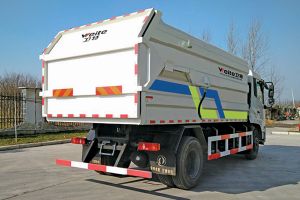

Mobile garbage compression station can be used with WT25250ZXX, WT25160ZXX compartment unloading garbage truck. All-electric automatic control system.

Description
Specification
Features
Application
Description

1. Mobile garbage compression station can be used with WT25250ZXX, WT25160ZXX compartment unloading garbage truck.

2. Compression: horizontal compression with big compression ratio.

3. Big volume and loading.

4. Big garbage loading capacity of dump device.

5. All-electric automatic control system.

6. Main components of the hydraulic system are internationally renowned brand products.

7. Hydraulic control and mechanical locking of garbage bin back door sealing and open.



Mobile-Garbage-Compression-Station



Mobile-Compression-Station



Mobile-Garbage-Station

Specification
Model WTZ170YDZ WTZ120YDZ
Dimension (mm) 6100X2500X2175 4625X2500X2100
Max. Compression Force(kg) 36000 30000
Compression Horizontal Compression Horizontal Compression
Hydraulic Pressure(MPa) 21 21
Bin Volume(m³) 17 12
Garbage Weight(kg) 13000~15000 8000~10000
Electromagnetic Valve Artos Artos
ABB Motor Power(kw) 5.5 5.5
Voltage(V) 380/50HZ 380/50HZ
PLC Programming Siemens Siemens
Water Tap Water Tap Water
Features
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects and industry giants in aerospace, automobile manufacturing, steel metallurgy, ports and terminals, rail transportation, and energy and power. The company has accumulated a wealth of successful cases and obtained special equipment manufacturing Class A license, ISO series management system certification, EU CE certification, etc., qualifying it for global market access.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation and commissioning, personnel training, maintenance, parts supply, and technical upgrades. With hundreds of service outlets worldwide, it offers rapid response times and provides localized, timely technical support and repair services.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment, resulting in a high level of manufacturing technology. Key components are primarily sourced from well-known domestic and international brands or high-end domestic brands, ensuring high reliability. Quality design is integrated throughout the entire process of design, procurement, production, and testing, guaranteeing a high product qualification rate.
High Safety
Weihua Lifting strictly adheres to and often exceeds advanced international standards such as Chinese national standards (GB) and European Union standards (FEM) in its design. Key structures (such as main beams, end beams, wire ropes, and hooks) adopt high-standard safety factors with sufficient margins to eliminate safety risks caused by design defects at the source. The core components of the lifting mechanism (such as brakes, motors, and reducers) mostly use international first-tier brands (such as SEW, Siemens, ABB, etc.) or high-end domestic brands to ensure precise operation and reliable braking.
