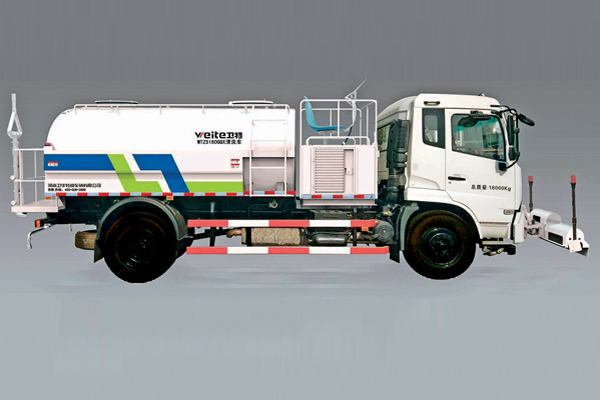

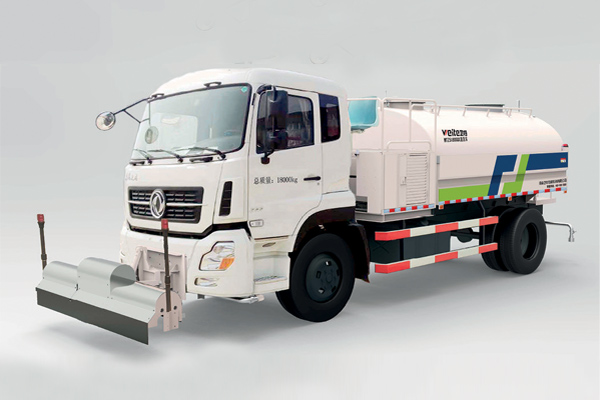

Product Name: Street Washing Truck
Weight: 15,800kg ~ 18,000kg
High Pressure Pump: 10MPa
Tank Volume: 7500L ~ 8600L
This washing truck has 2 independent washing system: high pressure washing and low pressure washing.
Product Name: Street Washing Truck
Weight: 15,800kg ~ 18,000kg
High Pressure Pump: 10MPa
Tank Volume: 7500L ~ 8600L
This washing truck has 2 independent washing system: high pressure washing and low pressure washing.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >This washing truck has 2 independent washing system: high pressure washing and low pressure washing. The vice motor drives high press washing system, while the low pressure washing system is driven by truck chassis motor. With different nozzles, high pressure water is fitted on the front of the truck for washing and spraying roads, while low pressure water is equipped at the rare of truck for sprinkling water.
There is voice alarm system which can accurately broadcast a variety of security tips and failures. Water tank is with a low water level sensor alarm system, which automatically cut off the pump to prevent water damage to the pump in case of no water, effectively improve the pump life. Low-pressure water pump is China well-known brands of self-priming two-stage centrifugal pump with high efficiency, and high pressure water pump adopts internationally renowned brands.
User can choose a variety of special operating device, which effectively improve vehicle utilization. Electrical hydraulic system components using well-known brands with stable and reliable performance and long service life. This truck also equipped with optional auxiliary for firefighting and green irrigation.
Model | WTZ5160GQX | WTZ5161GQX | WTZ5180GQX |
Dimension (mm) | 9160X2500X3050 | 8990X2500X3050 | 9380X2500X3050 |
Weight (kg) | 15800 | 16000 | 18000 |
Chassis model | DFL1160BX1V | EQ1160GD5NJ | DFH1180BX1V |
Chassis engine model | ISD210-50 | YC6J210N-52 | ISD210-50 |
Chassis engine power (kW) | 155 | 155 | 155 |
Chassis engine Emission Standards | China Ⅴ | China Ⅴ | China Ⅴ |
Vice engine power (kW) | 57 | 57 | 57 |
Vice engine Emission Standards | China Ⅲ | China Ⅲ | China Ⅲ |
Wheelbase (mm) | 4500 | 4500 | 4500 |
Pump Pressure(MPa) | 10 | 10 | 10 |
Washing Width (m) | ≥24 | ≥24 | ≥24 |
Water gun range (m) | ≥36 | ≥36 | ≥36 |
Sprinkler cleaning width (m) | 2.5~3.5 | 2.5~3.5 | 2.5~3.5 |
Working Speed (km/h) | 7~15 | 7~15 | 7~15 |
Water flow(L/min) | 137 | 137 | 137 |
Max. volume of water tank (L) | 7500 | 7500 | 8600 |
Truck speed (km/h) | 90 | 90 | 90 |
