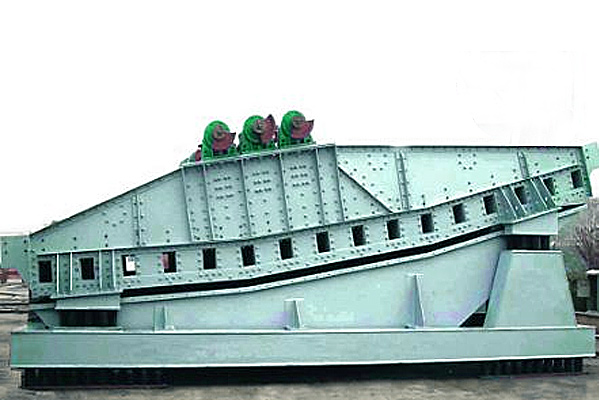

Product Name: TDS Ellipse Uniform-thickness Vibrating Screen
Capacity: 10-200t/h, 30-500t/h
Screen Mesh Sizes: 3-50mm, 3-200mm
TDS ellipse uniform-thickness vibrating screen has the larger processing quantity and the higher screening efficiency, which is suitable for screening the solvent and cold sinter.
Comparing with the ordinary screeners with the same specifications, TDS ellipse uniform-thickness vibrating screen has the larger processing quantity and the higher screening efficiency. Therefore, it is suitable for screening the solvent and cold sinter in the metallurgy industry, classifying the ore in the mining industry, as well as classifying, dehydrating and medium releasing in the coal industry. It is worth mentioning that it is considered as a kind of ideal alternative product for the existing large-scale vibrating screen and the imported products from foreign countries.
Structural Features:
1. It applies the three-phase screen surface design to form the uniform-thickness screening layer.
2. The materials flow velocity is stable and uniform with high screening efficiency.
3. It applies three-axis driving and forced synchronous vibration principle to make the stable operation.
4. There are multiple screen plates for selection.
5. It is equipped with secondary vibration isolation system to alleviate the foundation load.
| Model specification | ZSG-1020 | ZSG-1030 | ZSG-1530 | ZSG-1540 | ZSG-1550 | ZSG-1850 |
| Screening capacity (t/h) | 10-200 | 15-250 | 20-350 | 25-400 | 30-500 | 30-500 |
| Feeding degree (mm) | <250 | <350 | <400 | <400 | <400 | <400 |
| Screening area (m2) | 2 | 3 | 4.5 | 6 | 7.5 | 7.5 |
| Screen mesh sizes (mm) | 3-50 | 3-150 | 3-200 | 3-200 | 3-200 | 3-200 |
| Vibration frequency (r / min) |
960 | 960 | 960 | 960 | 960 | 960 |
| Double vibration amplitude (mm) | 8—12 | 8—12 | 8—12 | 6—10 | 6—10 | 6—10 |
| Motor power (KW) | 2.2x2 | 2.2x2 | 3.7x2 | 3.7x2 | 5.5x2 | 7.5x2 |
