XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine
XL Sand Washing Machine

XL Sand Washing Machine

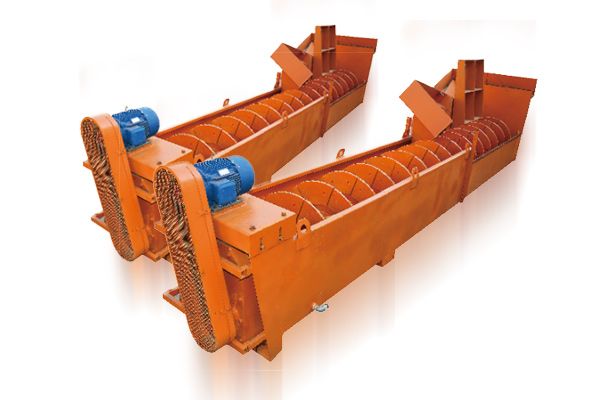

Product Name: XL Sand Washing Machine

Capacity: 100-250t/h

Input Size: ≤10

Water Consuption: 10-80, 20-250



The XL Sand Washing Machine is suitable for choosing & washing, classifying and hydrating the backfill pressure sand in the construction site, dinas plants, hydropower stations, concrete dam sites and oil wells.

Description
Specification
Features
Application
Description

As a kind of high-efficient bucket-wheel choosing & washing equipment which shall combine with the domestic dinas industry and cooperate with the sand maker, the dinas choosing & washing machine is equipped with cleaning, dehydration and classification function, therefore, which is suitable for choosing & washing, classifying and hydrating the backfill pressure sand in the construction site, dinas plants, hydropower stations, concrete dam sites and oil wells, besides, it can also be used for choosing and washing the fine-grained and coarse-grained materials, especially, the building sand and road sand.


Structural Features:

1. It has large processing capacity and small power consumption.
2. The washing materials have less runoff and high choosing & washing efficiency.
3. It has rational structure and stable operation.
4. It has low failure rate and simple repairing.
5. It can save water resources without pollution.
6.It has a long service life and long-term maintenance is not required.
7. There is hardly any quick-wear part, except for sieve.

Specification
Model Screw diameter Water channel depth Size of input granularity Production capacity Rotation speed screw Water consumption: Physical dimension motor power Weight
XL915 915 7585 ≤10 100 21 10-80 8420*2810*3960 11 6.2
2XL915 915 7580 ≤10 200 21 20-160 8420*3765*3960 2*11 11.1
XL1115 1115 9782 ≤10 175 17 20-150 10970*3945*4720 15 10.2
2XL1115 1115 9782 ≤10 350 17 40-300 10970*5250*4720 2*15 17.9
XL1370 1370 10363 ≤10 250 14 20-250 11420*4458*5326 22 15.3
Notes:
The foregoing attached table shall only be used for reference. The actual application shall be appropriately
modified according to customers' requirements.
