Home / Products > Mining Machinery / Scraper-type Circular Stockyard Reclaimer

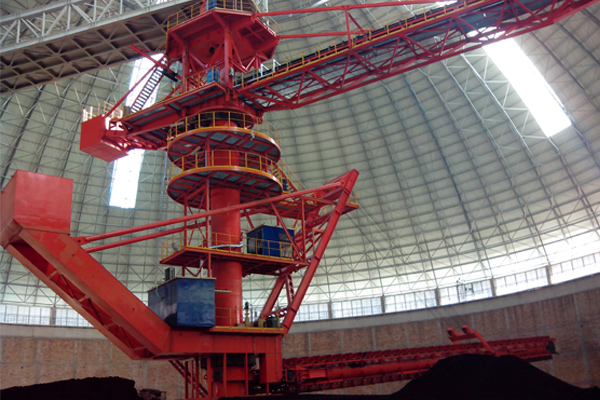

Product Name: Scraper-type Circular Stockyard Reclaimer
Stack Capacity: 500~800t/h, 1500~3000t/h
Reclaim Capacity: 40~200t/h, 1200~1500t/h
Scraper-type circular stockyard reclaimer is a pre-equalization equipment that adopt continuous synthetic stacking and whole section materials methods to reclaim and stacking.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >Scraper-type circular stockyard reclaimer is a pre-equalization equipment that adopt continuous synthetic stacking and whole section materials methods to reclaim and stacking. It's mostly used to stacking bulk materials such as limestone, which is useful in construction, coal, metallurgy, electricity, port industries. It's applicable for indoor or hypaethral area where the bulk materials need to be homogenize, store, transfer. Scraper-type circular stockyard reclaimer is capable of blending material piling and blending material reclaiming simultaneously or respectively.
Scraper-type circular stockyard reclaimer has three type: cantilever (Top pile side), gate type and bridge type.
According to operational environment, scraper-type circular stockyard reclaimer is divided into 2 types: Indoors and hypaethral inclined. The stockyard diameter ranges from Φ60~Φ120meters.
Scraper-type circular stockyard reclaimer has good equalization effect, large stockyard capacity, small occupy area, highly-automatic and good environmental protection performance features.
We also make other bulk material handling equipment. Click to know more.
1. Bucket Wheel Stacker Reclaimer
2. Chain Bucket Overhead Crane
.jpg)
| Model | Unit | YG*/*. 60 | YG*/*. 78 | YG*/*. 80 | YG*/*. 90 | YG*/*. 95 | YG*/*. 100 | YG*/*. 110 | YG*/*. 120 | |
| Production capacity | Stack | t/h | 500~800 | 500~1000 | 500~1200 | 800~1500 | 1000~2000 | 1000~2500 | 1500~3000 | |
| Reclaim | t/h | 40~200 | 100~500 | 40~400 | 250~500 | 400~700 | 800~1200 | 1000~1200 | 1200~1500 | |
| Material characteristics | Applicable materials | Coal,coke,limestone,bauxite,iron ore,pellet ore,clay and other bulk materials | ||||||||
| Density | t/m³ | 0.5~2.5 | ||||||||
| Granularity | mm | 0~300 | ||||||||
| Stockyard diameter | m | 60 | 78 | 80 | 90 | 95 | 100 | 110 | 120 | |
| Storage Capacity | m³ | 15000 | 30000 | 34000 | 52000 | 60000 | 75000 | 86000 | 95000 | |
| Traveling speed | Work | m/min | 0.2~2 stepless speed regulating | |||||||
| Dispatching vehicle | m/min | 10 | ||||||||
| Slewing speed of reclaiming | m/min | 0.01 | ||||||||
| Stack | Rotary | m/min | 0.01 | |||||||
| Variable amplitude | 0.3~0.6 | |||||||||
| Maximum wheel load | KN | 250/300 | ||||||||
| Recommended steel track | P50/Q80/Q100 | |||||||||
| Power supply mode | Cable drum/safety sliding contact line | |||||||||
| Contact mode | Cable drum/safety sliding contact line/wireless | |||||||||
| Control mode | PLC program control, manual and single action | |||||||||
