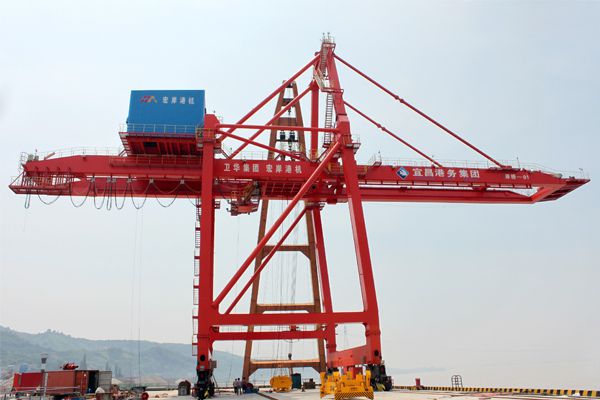

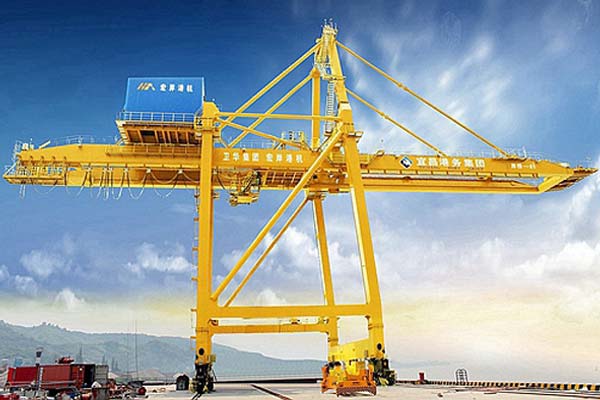

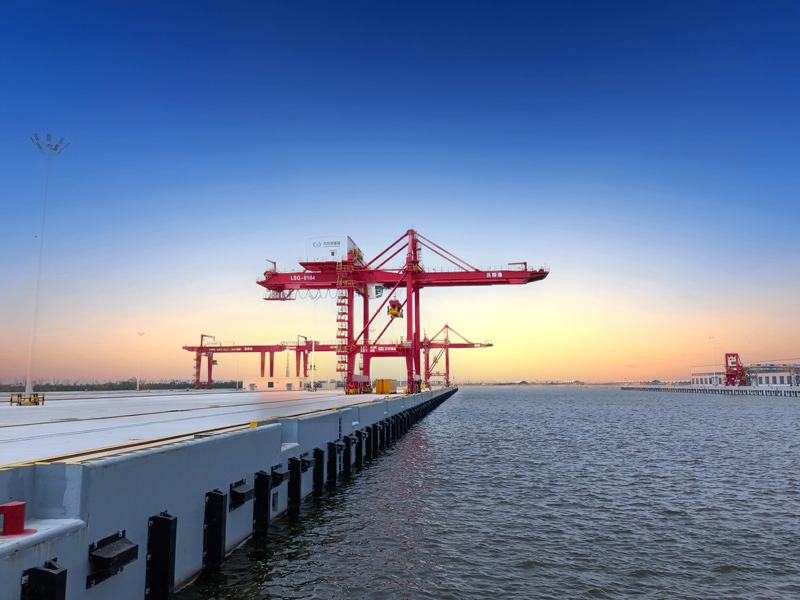

Product Name: Ship-to-Shore Gantry Crane
Lifting Capacity: 30.5-50t
Span: 10.5-22m
Working Level: A7, A8

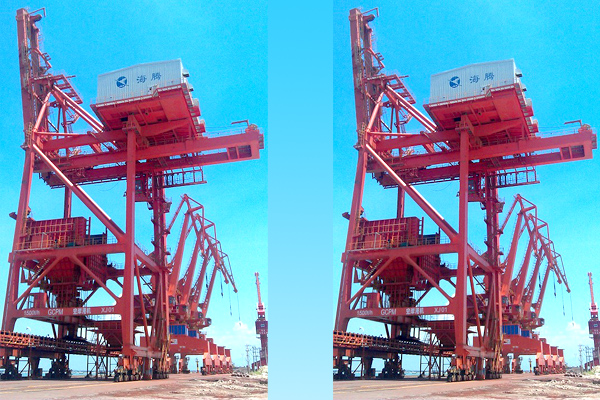

Ship-to-shore gantry crane is called STS or QC, which is constituted by steel structure, lifting mechanism, pitching mechanism, tilting mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, spreader, electrical equipment, necessary safety devices.
Ship-to-shore gantry crane is called STS or QC Crane, which is constituted by steel structure, lifting mechanism, pitching mechanism, tilting mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, spreader, electrical equipment, necessary safety devices and other accessories.
According to the different trolley types, this ship to shore gantry crane can be divided into three kinds: traction crane, semi traction crane and self-propelled crane. PLC control system and CMMS malfunction detection system make it automatic malfunction detection and diagnosis.
.jpg)
There are sufficient communication and lighting facilities making it work safely and reliably. Anti-sway control system can be installed on the STS crane according to users' demand.
.jpg)
.jpg)
.jpg)
| Lifting Capacity( below spreader ) | t | 30.5 | 35 | 40.5 | 50 | |||
| Lifting Capacity( above spreader ) | t | 38 | 45 | 50 | 60 | |||
| Work Level | A7 | A7 | A8 | A8 | ||||
| Span( m ) | S | 10.5 | 10.5 | 22 | 22 | |||
| Base Distance | B | 16.5 | 17.63 | 16 | 16 | |||
| Lifting Height( above/Below) | H1 | 22 | 22 | 28 | 38 | |||
| H2 | 16 | 10 | 14 | 14 | ||||
| Speed | Lifting Speed | Full Load | m/min | 46 | 30 | 50 | 70 | |
| Only With Spreader | 120 | 60 | 120 | 150 | ||||
| Trolley Traveling | 150 | 120 | 120 | 220 | ||||
| Crane Traveling | 45 | 25 | 45 | 45 | ||||
| One Luffing Time Of Jib | min | 7 | 6 | 5 | 5 | |||
| Main Dimension | L1 | 38000 | 30000 | 38000 | 55000 | |||
| L2 | 10000 | 10000 | 11000 | 18000 | ||||
| L3 | 4000 | 8850 | 6000 | 6300 | ||||
| L4 | 4000 | 110000 | 15000 | 20000 | ||||
| H3 | 14000 | 110000 | 12600 | 16500 | ||||
| H4 | 75670 | 68100 | 8000 | 9500 | ||||
| B0 | 25600 | 17630 | 25600 | 26500 | ||||
| Total Power | KW | 650 | 500 | 920 | 1700 | |||
| Max Wheel Load | KN | 300 | 260 | 400 | 450 | |||
| Steel Track Recommended | P50 | P50 | QU80 | QU100 | ||||
| Power | 380V, 50Hz，3Phase AC | |||||||
