Product Name: Lifting Platform
Lifting platform is a kind of multifunctional equipment. Its lift system bases on hydraulic drive. It makes aerial work more efficient and safer. The lifting platform can be fixed and movable.
TAG: Lifting Platform
Product Name: Lifting Platform
Lifting platform is a kind of multifunctional equipment. Its lift system bases on hydraulic drive. It makes aerial work more efficient and safer. The lifting platform can be fixed and movable.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >Lifting platform is a kind of multifunctional equipment. Its lift system bases on hydraulic drive. This lifting platform makes aerial work more efficient and safer. The lifting platform can be fixed and movable.
We have various types of lifting platforms such as fixed type, mobile type, electric battery type. It has features of light weight, self-propelled, electric starting, self-supported, large working range and simple operation, which can carry out 360 degree aerial work crossing obstacles.

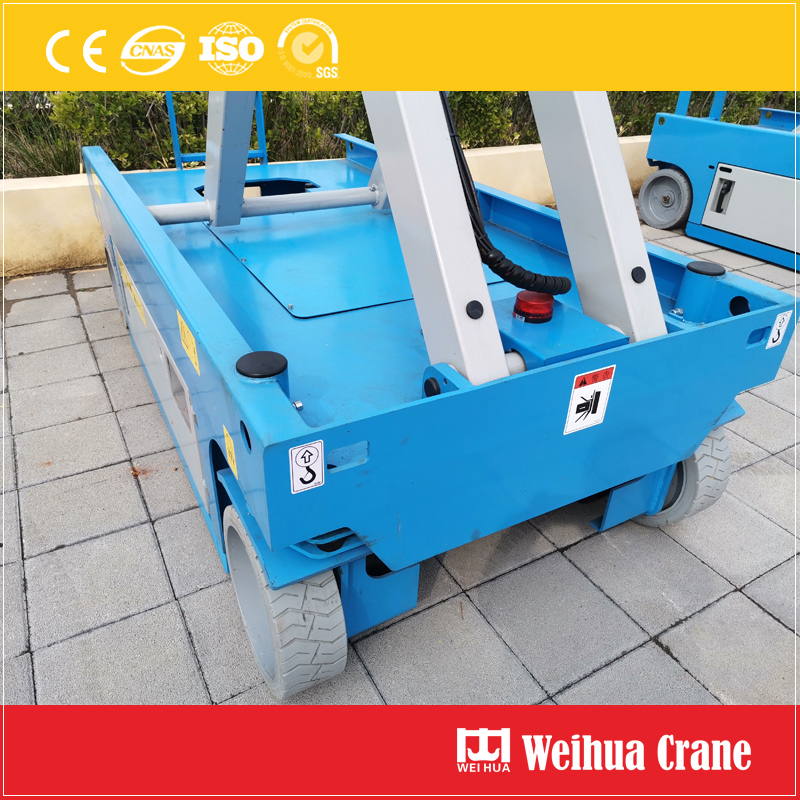

This image is a electric battery drive scissor lift with capacity: 200kg, Max. lift height: 15.7m, table size: 2.64*1.14m, motor power: 24v/4.5kw, battery: 4*6v/300Ah, charge: 24v/25v, drive wheel diamer: 381*127
Links: Single Girder Overhead Crane | Free-Standing Jib Crane | Flexible Suspension Crane
|
Model |
Capacity |
Max. Height |
Min. Height |
Platform Size |
Lift Speed |
Power |
Voltage |
Weight |
Operation |
|
SJY 1-6 |
1000 |
6000 |
1330 |
2000×1000 |
60 |
2.2 |
380v/50hz |
1200 |
Manual |
|
SJY 1-9 |
1000 |
9000 |
1600 |
2100×1200 |
90 |
4 |
380v/50hz |
2200 |
Manual |
|
SJY 1-12 |
1000 |
12000 |
1920 |
2450×1500 |
120 |
4 |
380v/50hz |
2500 |
Manual |
|
SJY 1-14 |
1000 |
14000 |
2100 |
2400×1500 |
140 |
4 |
380v/50hz |
2600 |
Manual |
.jpg)
Links: Tile Making Truck Crane | Electric Flat Car | Wind Turbine Generator Maintenance Crane
.jpg)
.jpg)

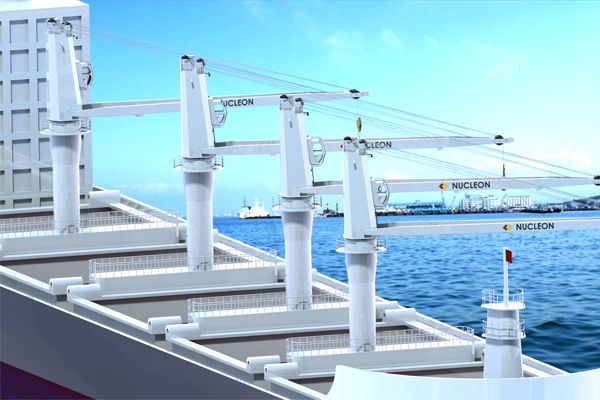

Marine Deck Crane
PYF Composite Cone Crusher

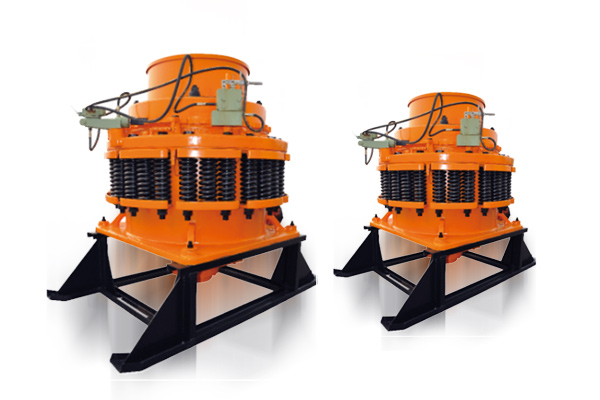

PY Spring Cone Crusher
