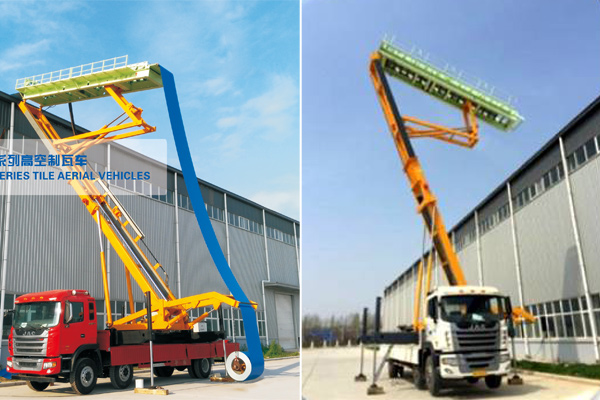

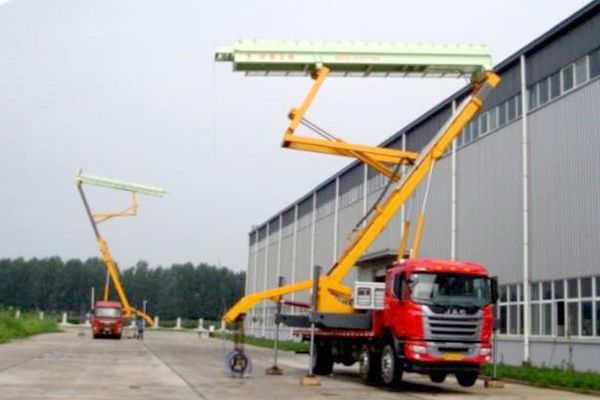

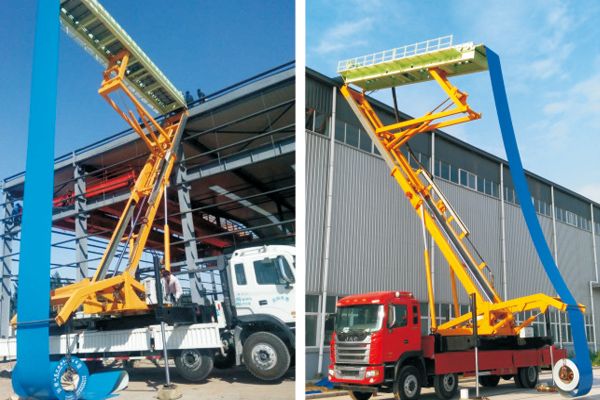

Tile Making Crane Truck

Features of Steel Steel Making Crane Truck Machine:

1. Mobile roofing tile making machine is mainly used for forming and conveying roofing of steel structure workshops;

2. Combine of steel tile transport and making.

3. Hydraulic drive, simple structure, easy maintenance.

4. Max. thickness of steel tile: 1mm. And length is flexible.

5. Light weight.

6. Fast and efficient, adaptable;

7. New way for roof panels production;

8. The machine consists of lifting system, chassis, tile making machine and an electro-hydraulic control system;

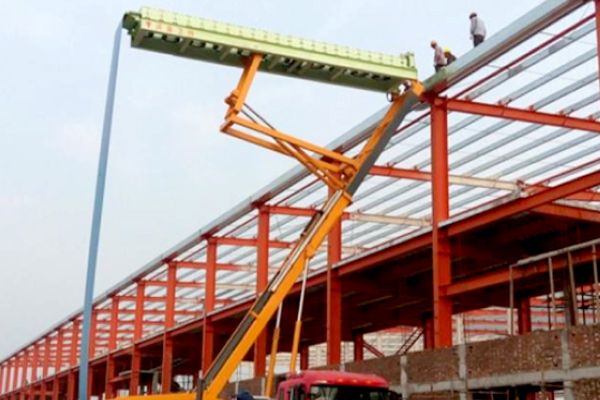

9. Roof panel supply from ground, high-altitude molding, convenient transfer of the construction sites;

10. 360 degree rotation of chassis, large working range and strong flexibility;

11. The lifting system consists of luffing mechanism, telescopic mechanism and balancing mechanism;

12. The system has obtained 3 national patents;

13. The control system adopts double pump station hydraulic technology, which is stable, safe and reliable;

14. High-quality hydraulic components with reasonable layout, and convenient maintenance;

15. The electrical system adopts PLC control, equipped with long balancing legs, remote control and panel dual-mode operation for convenient and safe operation;

16. Max. luffing: 70°

17. Max. lift height: 16.5m

18. It adapts to any slope of the plant, multi-model tile machines can be interchange;

19. Intelligent control, precise tile making;

20. Low construction cost and high efficiency;

21. Leading the development of roofing and color steel tile high-altitude construction industry.

Weihua mobile roof panel machine has 3 advantages:

1. Automatic glue injection system improves the waterproof performance by 60%;

2. Guangzhou Automobile Hino traction vehicle with strong power, stable operation;

3. Whole vehicle are energy efficient and improve construction efficiency.
