Product Name: Overhead Crane with Clamps
Capacity: 35-65t
Span: 27.5-37m
Lifting Height: 12m

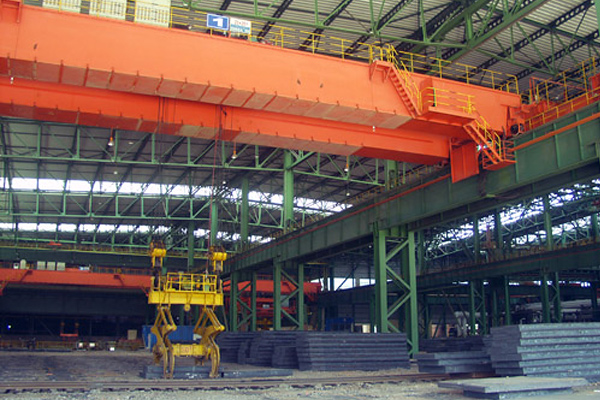

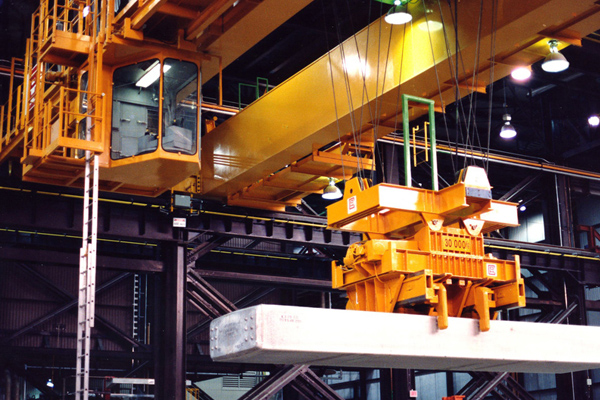

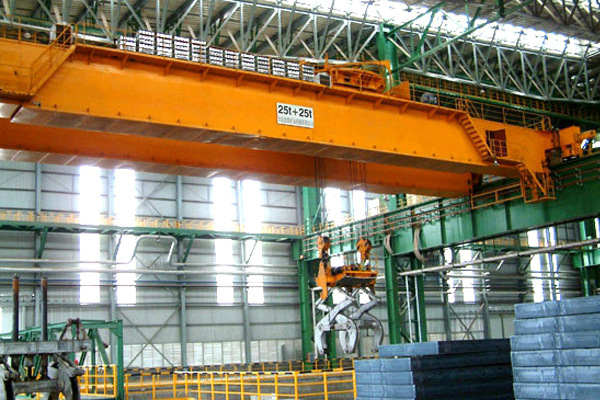

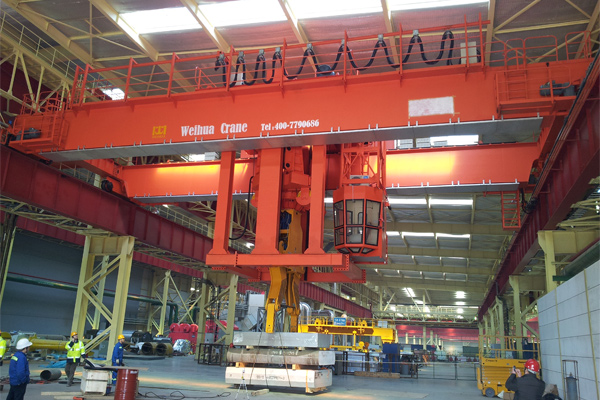

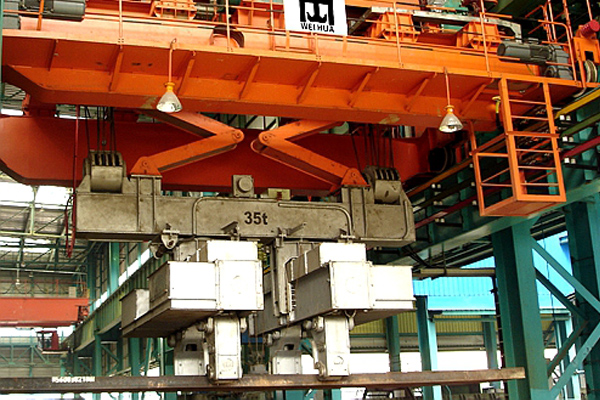

The clamp of this crane is parallel to the main girder. The clamp overhead crane is widely used in outdoor and indoor environments such as steel mills, shipyards, ports, storage yards, and warehouses for loading, unloading steel slabs, section bar etc.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >The clamp of this overhead crane is parallel to the main girder. The clamp overhead crane is widely used in outdoor and indoor environments such as steel mills, shipyards, ports, storage yards, and warehouses for loading, unloading steel slabs, section bar etc.

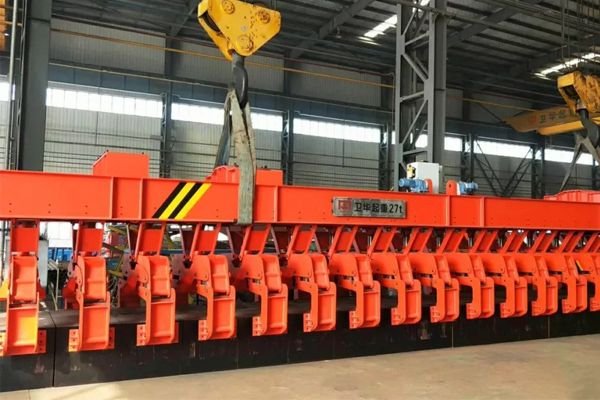

This overhead crane with clamp is a good choice especially for lift and transport different slabs with different clamps basing on the standard and weight of materials (thickness, length and the stack). Also we can provide speed regulation (1:10 or more) for each mechanism and the overload alarm, remote control, PLC control, malfunction detection and display system.
.jpg)
| Lifting Capacity | Span | Lifting Height | Work Duty | Lifting Speed | Crane Traveling Speed | Trolley Traveling Speed | Track | ||
| t | m | m | m/min | m/min | m/min | QU120 | |||
| 35 | 27.5 | 12 | A7 | 1.2~12 | 4.2~42 | 8.5~85 | |||
| 50 | 37 | 12 | 0.95~9.5 | 3.8~38 | 8~80 | ||||
| 65 | 35.5 | 12 | 0.78~7.8 | 3.8~38 | 7.5~75 | ||||
