Product Name: Rubber Tire Gantry Crane for Steel Pipe Handling
Lifting Capacity: 10+10t; 18+18t (with magnet spreader)
Classification Level: A6
Max. Lifting Height: 6m
Max. Wheel Load: 300KN

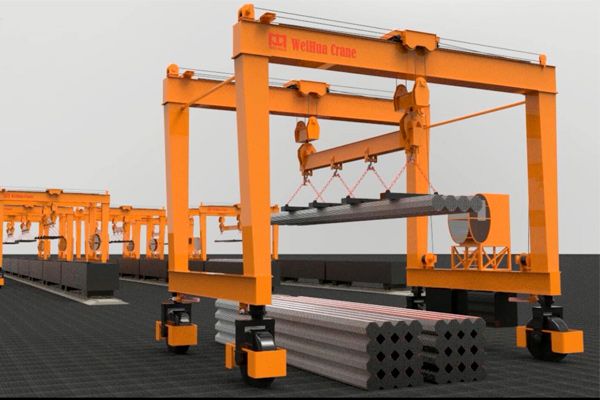

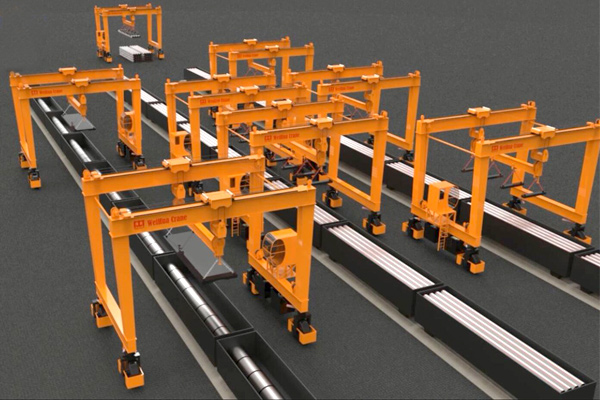

This gantry crane is a rubber tyred mobile crane with electromagnetic beam spreader for handling of steel pipes. It works outdoor, can lift several steel pipes at once, carry out 0° traveling, 45°traversing, 90°traversing and in-place steering.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.

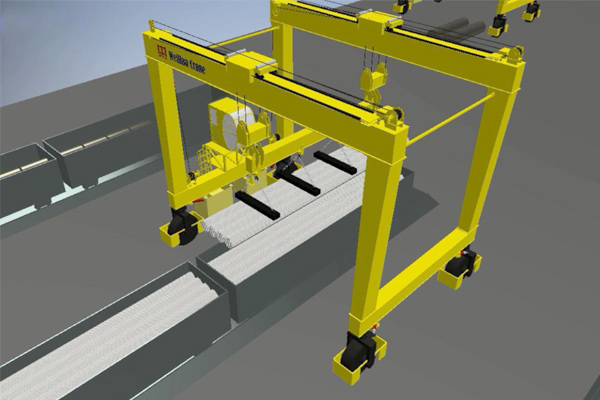

Read More >This gantry crane is a rubber tyred mobile crane with electromagnetic beam spreader for handling of steel pipes. Rubber tire gantry crane for steel pipe handling works outdoor, can lift several steel pipes at once, carry out 0° traveling, 45°traversing, 90°traversing and in-place steering.
Lifting Capacity: 10+10t (without hook and magnet); 18+18t (without hook)
Classification Level: A6
Max. Lifting Height: 6m
Max. Wheel Load: 300KN
Operating slop: 3% (full load); %8 (unload)
Operation: Operator's cabin
Cross Traveling Mechanism
Traveling Speed: 30m/min
Running Mode: Traction straight
Driving Mode: Hydraulic
Long Traveling Mechanism
Traveling Speed: 100m/min
Running Mode: Straight, transverse, fixed point, rotation
Driving Mode: Hydraulic
Rail Mounted Gantry Crane for Steel Track Handling

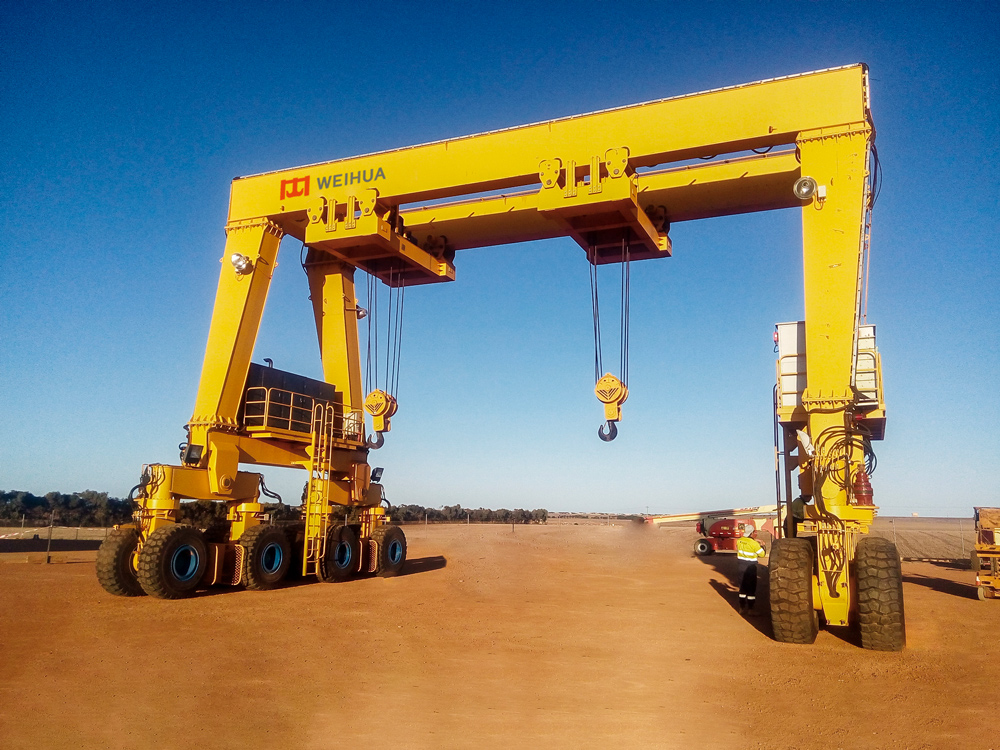

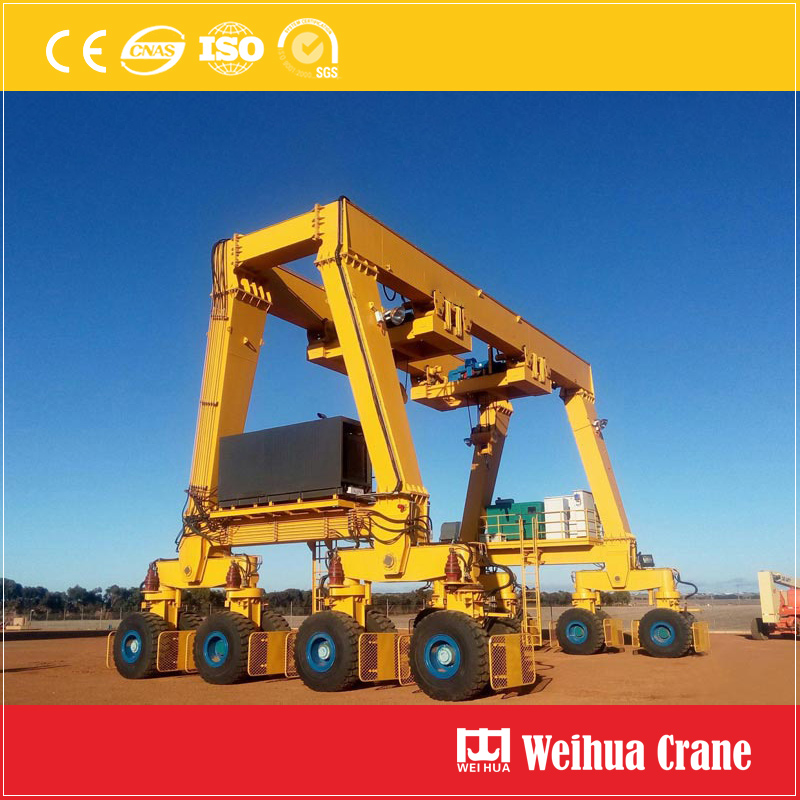

Rubber Tire Mobile Gantry Crane
.jpg)
.jpg)
Rubber Tyred Container Gantry Crane
Gantry Crane for Subway Construction

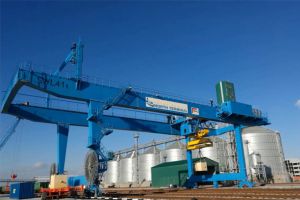

Container Gantry Crane for Railway Freight Yard
