Product Name: Sewage Suction Truck
Weight: 7,360kg, 8,275kg, 12,495kg
Tank Volume: 4m3, 5m3, 8m3

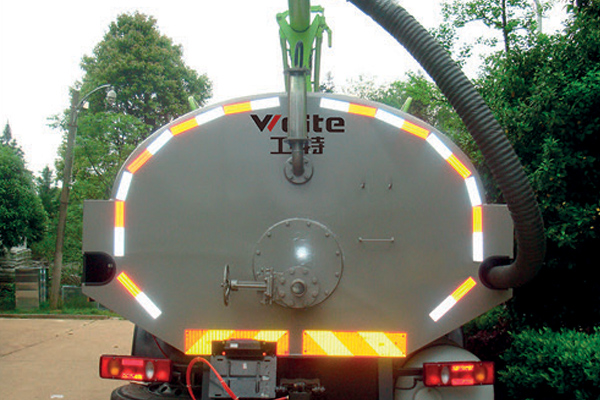

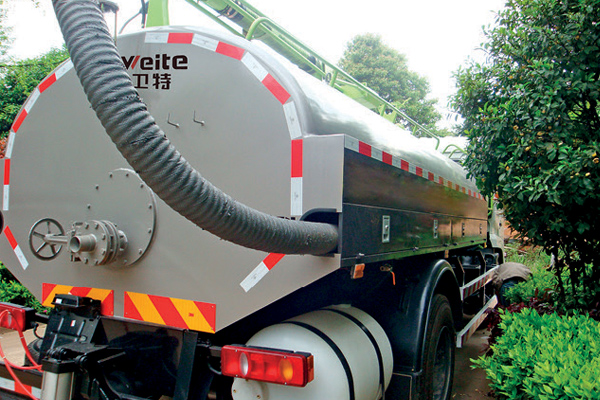

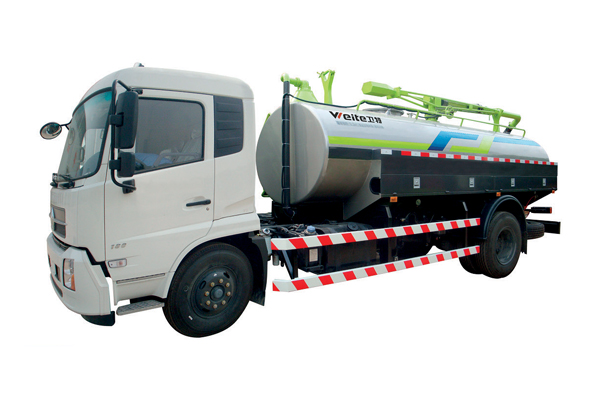

Sewage suction truck is mounted with a tank and suction equipment for sucking swage such as sludge, feces in the septic tank or other thick liquids sewages.
This 320t overhead crane is the biggest metallurgical foundry crane ever made in Henan Province, China. Main structure of the 320t foundry crane is with 4 girders and 6 rails.
Read More >.jpg)
This intelligent steel pipe distribution overhead crane is used to distribute steel-pipes in production line before the steel-pipes being sawed. It can transport steel pipes from one roller table to any places intelligently.
Read More >.jpg)
Rail-type container gantry crane is consists of the steel structure, lifting mechanism, micro-transfer mechanism, anti-sway system, travelling mechanism. Container Rail Mounted Gantry Crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
Read More >Sewage suction truck is mounted with a tank and suction equipment for sucking swage such as sludge, feces in the septic tank or other thick liquids sewages.
1. Tank is made of durable high quality steel plate, and there are anti-corrosion anti-rust paint coated inside the tank.
2. Tank is equipped with anti-overflow valve to prevent overflow of large suction of the vacuum pump. The four-way valve can change the direction of pumping and emissions operations.
3. Suction power system is driven the gear box.
4. The tank adopts hydraulic and mechanical seals, safe and reliable.
5. Simple operation, convenient and reliable.
| Model | WTZ5070GXE | WTZ5080GXE | WTZ5120GXE |
| Size (mm) | 5850X1990X2550 | 6700X2220X2550 | 7080X2480X2850 |
| Weight (kg) | 7360 | 8275 | 12495 |
| Chassis Model | EQ1070SJ3BDF | EQ1082GLJ2 | DFL1120B21 |
| Chassis Engine Model |
CY4BK551/ YC4FA115-50 |
CY4BK251/ YC4FA130-50 |
ISD180-50 |
| Chassis Engine Power (kW) | 75/85 | 115/95 | 132 |
| Chassis Engine Emission Standard | China V | China V | China V |
| Wheelbase (mm) | 3308 | 3800 | 3800 |
| Tank Volume（m³） | 4 | 5 | 8 |
| Max. Pump Pressure（MPa） | 1.1 | 1.1 | 1.1 |
| Suction Distance（m） | ≥5 | ≥5 | ≥5 |
| Max. Truck Speed (km/h) | 95 | 90 | 90 |
