Product Name: Tube Chain-type Conveyor
Capacity: 0.5-120t/h
Transportantion Distance: 0-30m
Power: 0.18-2.2Kw, 7.5-22Kw
The tube chain-type conveyor is a kind of continuous conveying equipment which can make use of chains or steel wire rope to make traction and solidify the materials which are pushed by the scrapper for the sake of conveying materials in a continuous way.
The tube chain-type conveyor is a kind of continuous conveying equipment which can make use of chains or steel wire rope to make traction and solidify the materials which are pushed by the scrapper for the sake of conveying materials in a continuous way.
The tube chain type conveyor is mainly applied to the pharmaceutical, chemical engineering, agriculture, coal, electricity and other industries to convey the pigment, sulfur, urea, pesticide, industrial salt, coal fines, cement, sand and grains, therefore, which can convey materials in the horizontal, vertical and space curvature way.
Structure Principle:

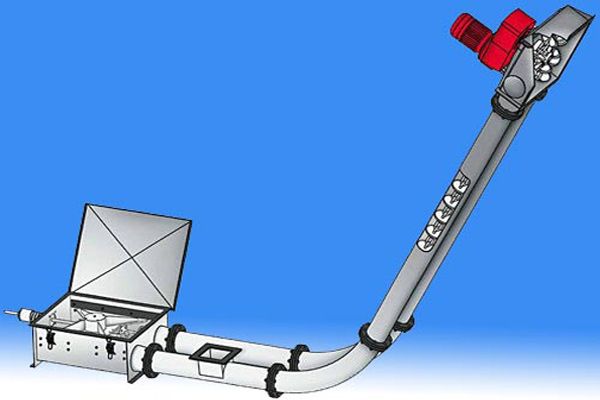

1. Tightener 2. Slave 3. Feeding equipment 4. Turning device 5. Discharge port 6. Driving gear
Performance Features:
1. It has compact structure and small space occupation, meanwhile, which can change the conveying direction in the three-dimensional way.
2. It is unnecessary to install dust collector on the outlet, what's more, the gas can be filled when materials are conveyed.
3. The materials can be conveyed smoothly along with the pipeline. There is less damaged material. The slow curve can make less material particles generate chippings.
4. It has the lowest energy consumption and the most economic operation costs because the whole set of system is driven by one motor.
5. The system will not be blocked, therefore, it is suitable for conveying materials in multiple forms.
| Tube Chain-type Conveyor | Model |
Chain pipe diameter (mm) |
Transport capacity (t/h) |
Transportation distance (m) |
Power (KW) |
||||
| TC-50 | Dn50 | 0.5~1.5 | 0~30 | 0.18~2.2 | |||||
| TC-80 | Dn80 | 1~3 | 0~30 | 0.18~3 | |||||
| TC-100 | Dn100 | 2~7 | 0~30 | 0.55~4 | |||||
| TC-125 | Dn125 | 3~10 | 0~30 | 1.1~5.5 | |||||
| TC-150 | Dn150 | 8~25 | 0~30 | 2.2~7.5 | |||||
| TC-200 | Dn200 | 15~50 | 0~30 | 3~15 | |||||
| TC-250 | Dn250 | 30~75 | 0~30 | 5.5~18.5 | |||||
| TC-300 | Dn300 | 60~120 | 0~30 | 7.5~22 | |||||
